TSK250
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

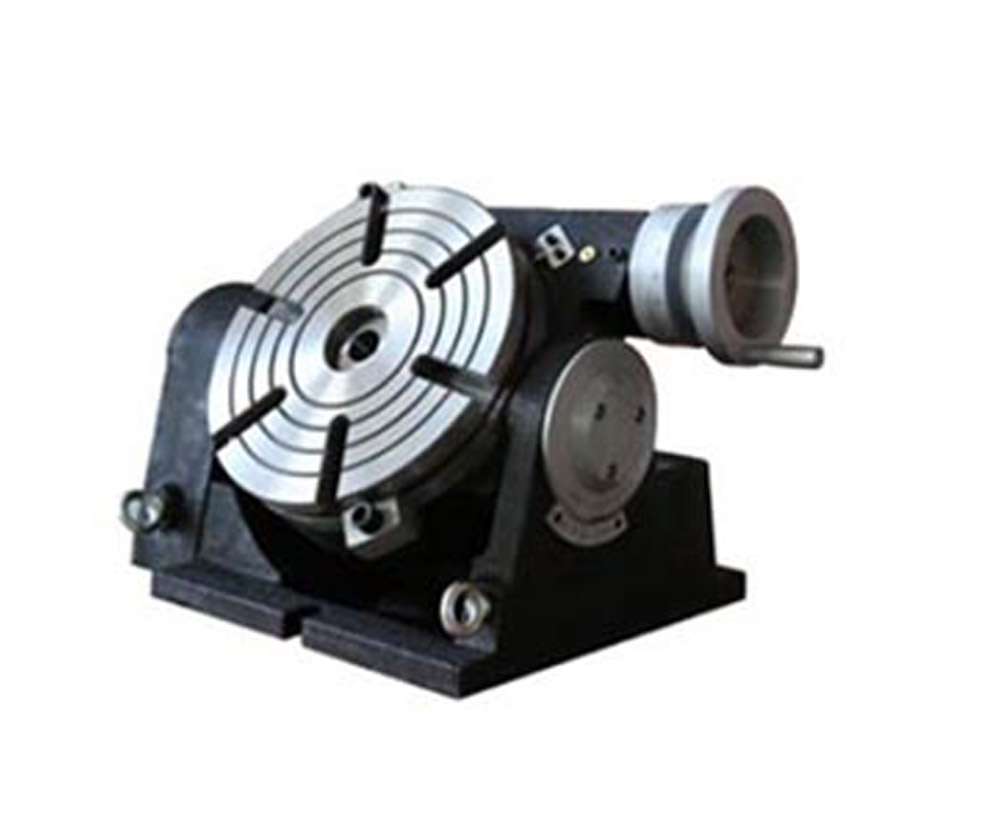

◆The TSK series tilting rotary tables are one of main accessories for milling,boring an drilling machines.They can be used for machining,the oblique hole or surface and hole of compound angle at one set-up.Besides this,it is so designed as to be used in a vertical position to carry out center work with a tailstock. ◆This table can be tilted to any position from 0~to 90~ and locked. ◆A flange for connecting scroll chuck is special supplied,and be packed independent.For special order,the dividing plates accessory allows the operator to accurately divide the 360~ rotation of the clamping surface into divisions of 2 through 66,and all divisible of 2,3 and 5 from 67-132.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
◆The TSK series tilting rotary tables are one of main accessories for milling,boring an drilling machines.They can be used for machining,the oblique hole or surface and hole of compound angle at one set-up.Besides this,it is so designed as to be used in a vertical position to carry out center work with a tailstock. ◆This table can be tilted to any position from 0~to 90~ and locked. ◆A flange for connecting scroll chuck is special supplied,and be packed independent.For special order,the dividing plates accessory allows the operator to accurately divide the 360~ rotation of the clamping surface into divisions of 2 through 66,and all divisible of 2,3 and 5 from 67-132.
Contact us
| Items | Unit | TSK250 | TSK320 | TSK400 |
| Diameter of table | mm | Φ250 | Φ320 | Φ400 |
| Morse taper of the center hole | 3# | 4# | 4# | |
| Width of T-Slot | mm | 14 | 14 | 14 |
| Modules of worm and worm gear | 1.5 | 2 | 2.5 | |
| Width of the locatinq key | mm | 18 | 18 | 18 |
| Adjacent angle of T-slot | 60° | 60° | 60° | |
| Transmission ratio of the worm gear | 1:120 | 1:120 | 1:120 | |
| Graduation of the table | 360° | 360° | 360° | |
| Tilting angle | 0°~90° | 0°~90° | 0°~90° | |
| Readout of the handwheel | 1’ | 1’ | 1’ | |
| Minimum value of wernier | 10” | 10” | 10” | |
| Minimum reading of the tilting vernier | 2’ | 2’ | 2’ | |
| Indexing accuracy | 60” | 60” | 60” | |
| Max.bearing(With table Hor.) | kg | 200 | 250 | 300 |
| Max.bearing(with table Vert.) | kg | 100 | 1125 | 150 |
| Net weight | kg | 80 | 135 | 280 |
| Gross weight | kg | 93 | 150 | 305 |
| Overall dimensions | mm | 550×430×330 | 630×490×950 | 830×600×460 |

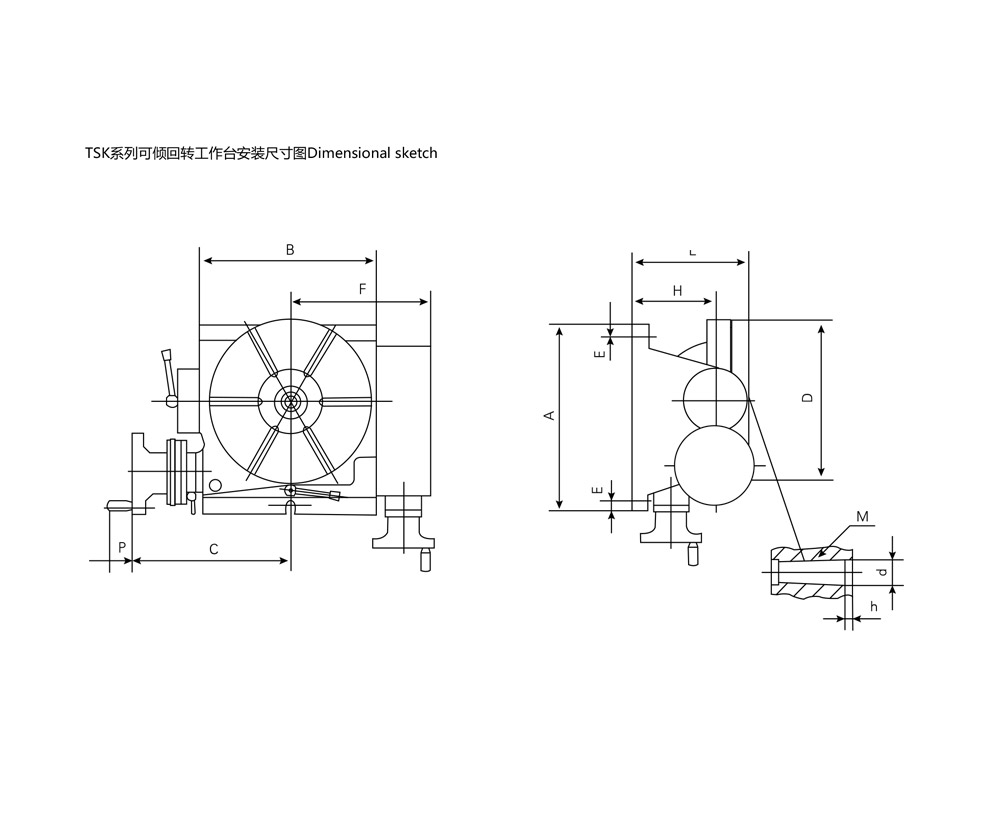

TSK Installation sketch and dimensions:
| A | 310 | 380 | 500 |
| B | 252 | 322 | 400 |
| C | 235 | 252 | 306 |
| D | Φ250 | Φ320 | Φ400 |
| E | 14 | 16 | 16 |
| F | 199 | 241 | 295 |
| H | 140 | 175 | 217 |
| L | 205 | 255 | 320 |
| M | MT3 | MT4 | MT4 |
| P | 40 | 50 | 50 |
| D | Φ30 | 40 | 40 |
| H | 6 | 10 | 10 |
