BS-2
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

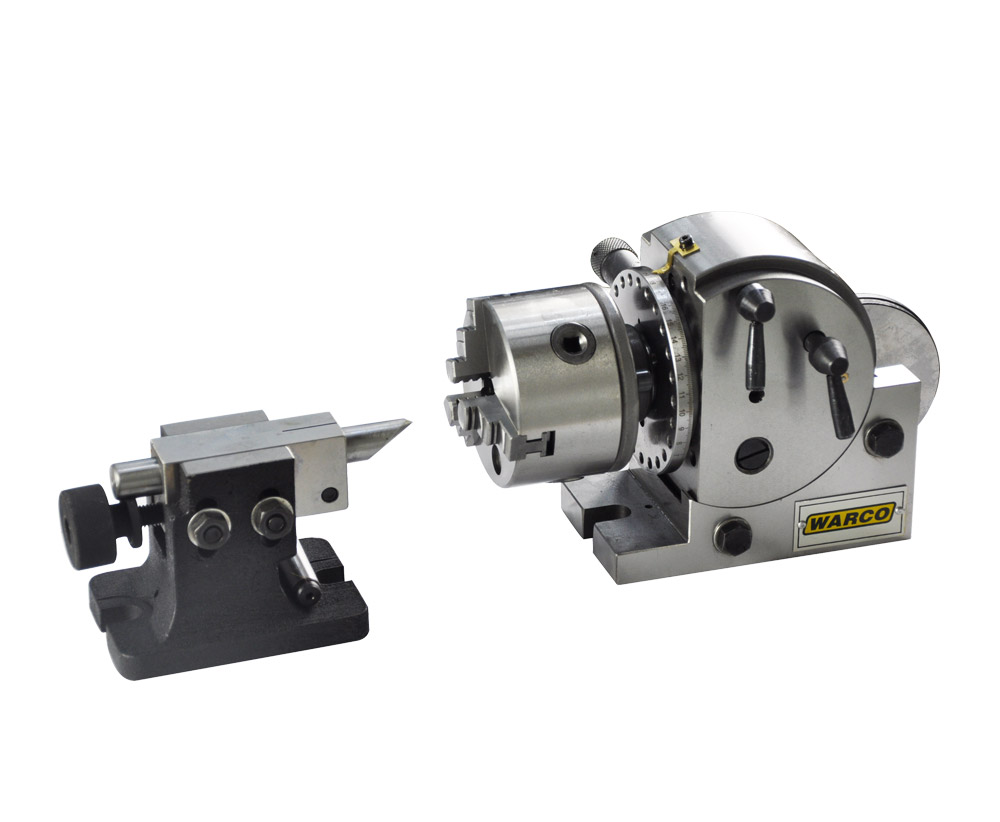

Features: The Universal dividing head(Index Center)has been designed to carry out all types of gear cutting.Precision dividing and spiral word with greater precision and efficiency than before.The center face can adjust from elevation 90 to depression 10,It suits for’high standard inspection and test.In order to satisfied customers,the worm gear redio is designed for 1:40.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Features: The Universal dividing head(Index Center)has been designed to carry out all types of gear cutting.Precision dividing and spiral word with greater precision and efficiency than before.The center face can adjust from elevation 90 to depression 10,It suits for’high standard inspection and test.In order to satisfied customers,the worm gear redio is designed for 1:40.
Contact us

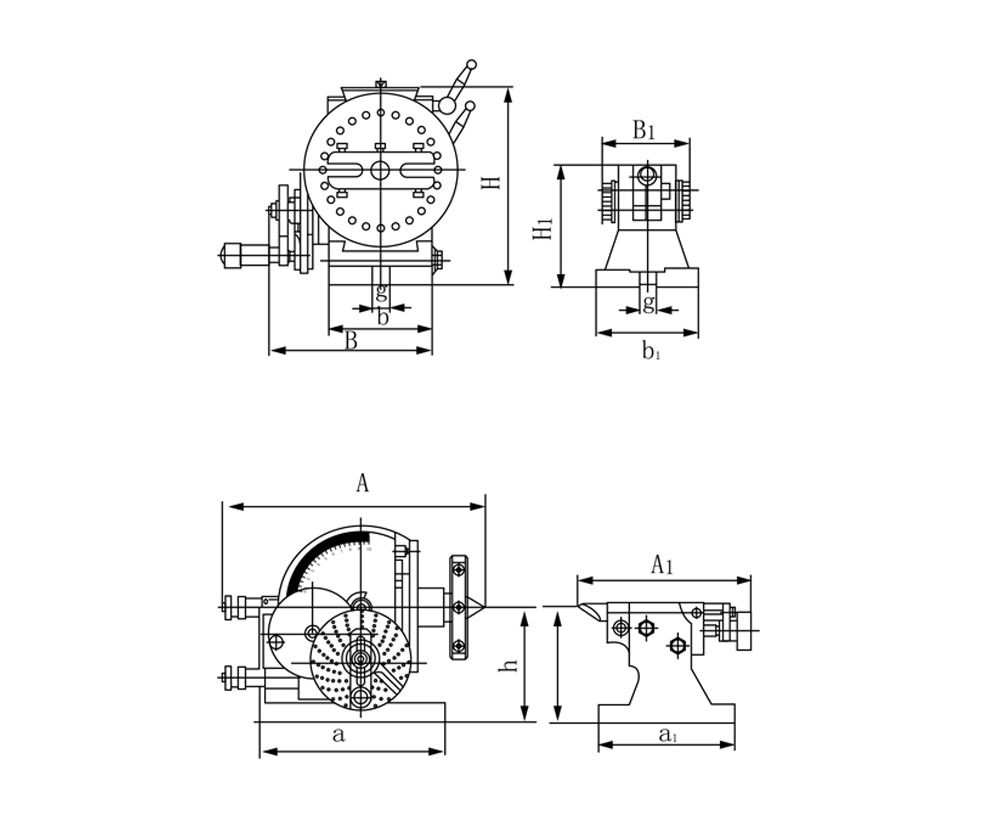

| UNIVERSAL INDEX CENTER B&S NO.2(HEADSTOCK) |
| Model | A | B | H | h | a | b | g | Work hole taper | N.W.(kg) |
| BS-2 | 370 | 280 | 236 | 133 | 212 | 134 | 16 | MT4 | 73 |
| 14.57 | 11.02 | 9.29 | 5.24 | 8.35 | 5.28 | 0.63 | B&S NO.10 | ||
| BS-2A | 264 | 210 | 236 | 133 | 212 | 134 | 16 | MT4 | 52 |
| 10.39 | 8.26 | 9.29 | 5.24 | 8.35 | 5.28 | 0.63 | B&S NO.10 |
|
UNIVERSAL INDEX CENTER B&S NO.2(TAILSTOCK)
|
|||||||||||||||||||||||||||
