QUICK OVERVIEW

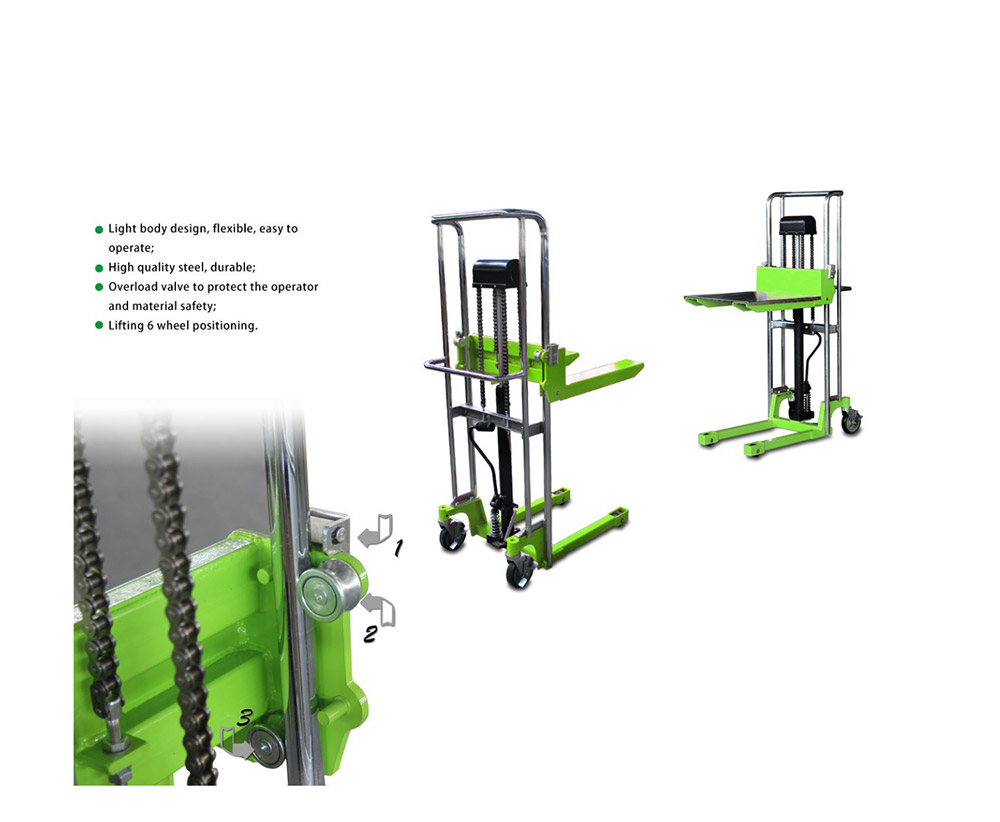

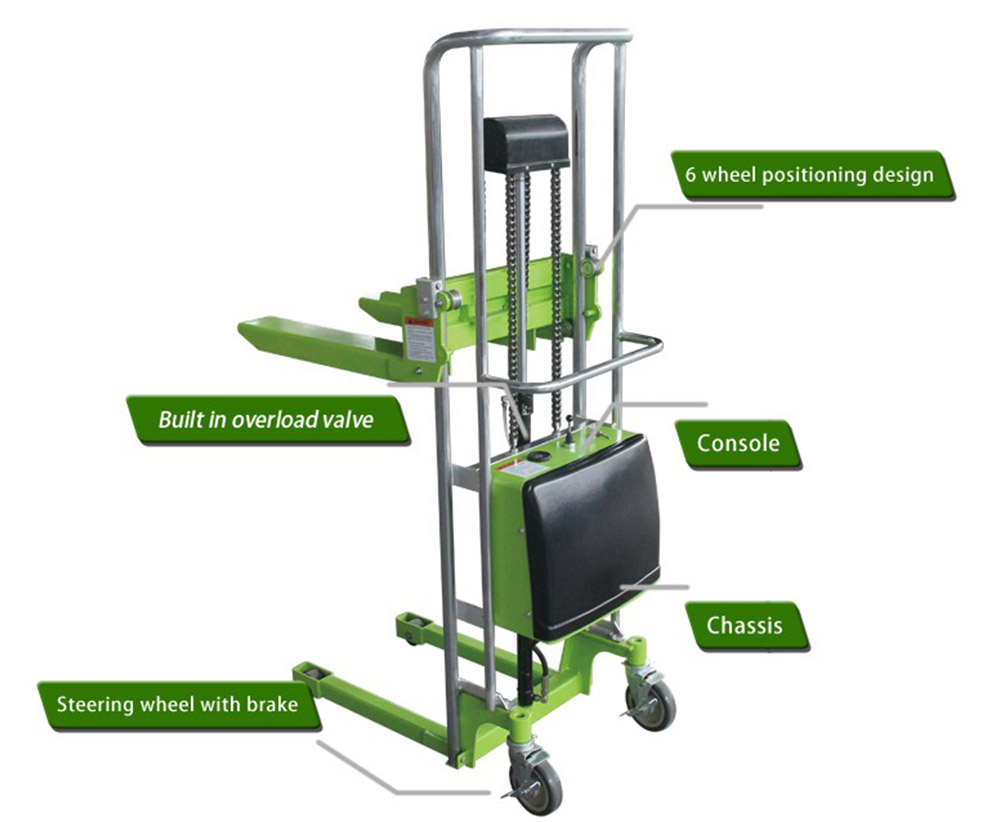

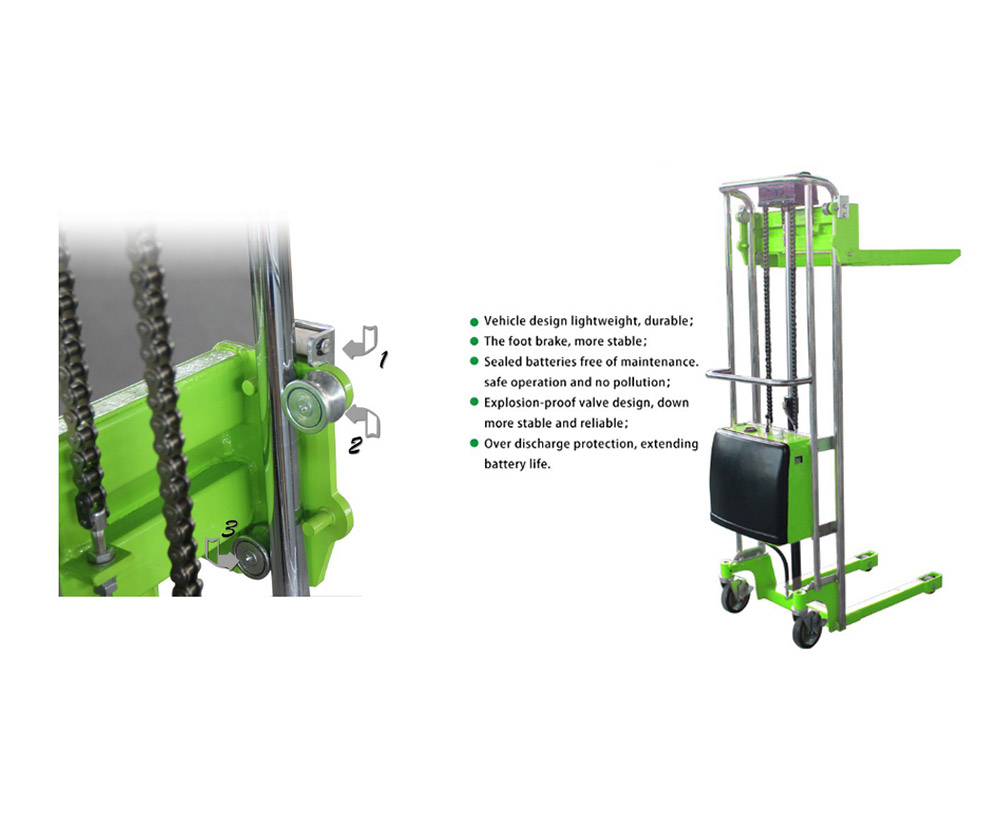

1. Vehicle design light weight,durable; 2.Foot brake,more stable; 3.Sealed batteries free of maintenance,safe operation and no pollution; 4.Explosion proof valve design,down more stable and reliable; 5.Over discharge protection,extending battery lift.
Contact us

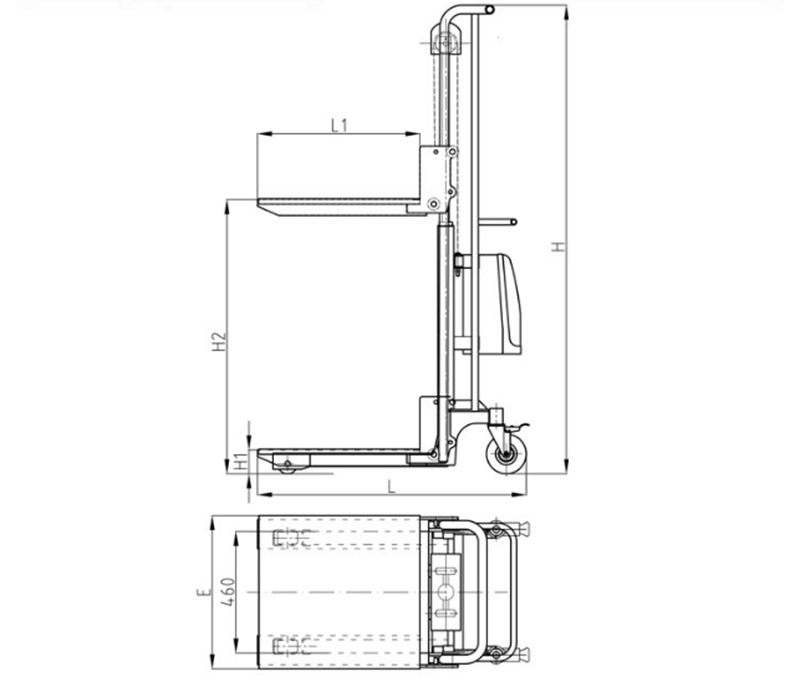

SPECIFICATION:
|
Model |
|
SDYG-Q 0411 |
SDYG-Q 0413 |
SDYG-Q 0415 |
|
Capacity |
Q(Kg) |
400 |
400 |
400 |
|
Load center |
C(mm) |
350 |
350 |
350 |
|
Type of lifting |
|
Electric |
Electric |
Electric |
|
Operating type |
|
Walkie |
Walkie |
Walkie |
|
Material |
|
PU |
PU |
PU |
|
Quantity Steering/Bearing |
|
2/2 |
2/2 |
2/2 |
|
Wheel base |
mm |
789 |
789 |
789 |
|
Bearing wheel size |
mm |
Φ75x42 |
Φ75x42 |
Φ75x42 |
|
Steering wheel size |
mm |
Φ150x38 |
Φ150x38 |
Φ150x38 |
|
Min.fork height |
H1(mm) |
90 |
90 |
90 |
|
Max.fork height |
H2(mm) |
1100 |
1300 |
1500 |
|
Fork outside width |
mm |
550 |
550 |
550 |
|
Fork inside width |
mm |
310 |
310 |
310 |
|
Fork length |
L1(mm) |
615 |
615 |
615 |
|
Single fork size |
e/s(mm) |
120/60 |
120/60 |
120/60 |
|
Overall length |
L(mm) |
1050 |
1050 |
1050 |
|
Overall width |
E(mm) |
610 |
610 |
610 |
|
Overall height |
H(mm) |
1370 |
1570 |
1770 |
|
Table size |
mm |
610x580 |
610x580 |
61x580 |
|
Min.turning radius |
Wa(mm) |
1022 |
1022 |
1022 |
|
Lifting speed(laden/unladen) |
mm/s |
70/80 |
70/80 |
70/80 |
|
Lowering speed(laden/unladen) |
mm/s |
80/70 |
80/70 |
80/70 |
|
Lift motor |
Kw |
0.8 |
0.8 |
0.8 |
|
Battery capacity |
V/Ah |
12V65 |
12V65 |
12V65 |
|
Battery weight |
Kg |
15 |
15 |
15 |
|
Net weight |
Kg |
127 |
129 |
|
