QUICK OVERVIEW

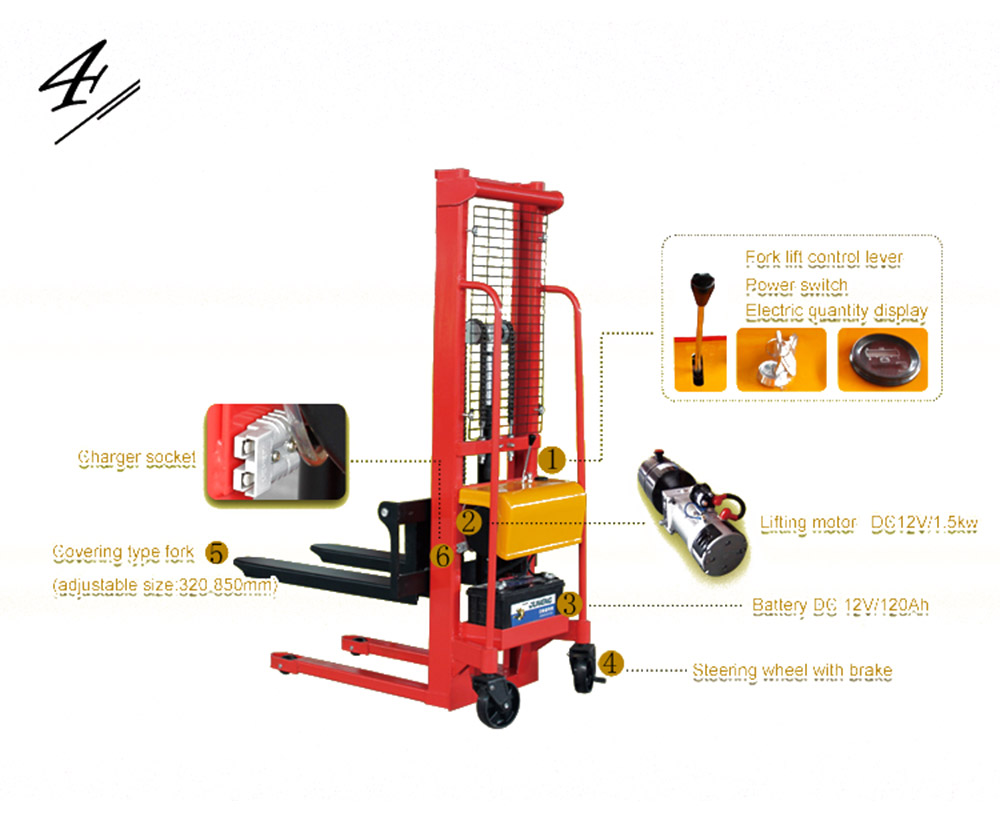

1. Steering chain auxiliary device ; 2.Foot brake,more stable; 3.Sealed batteries free of maintenance,safe operation and no pollution; 4.Explosion proof valve design,down more stable and reliable; 5.Over discharge protection,extending battery lift.
Contact us
SPECIFICATION:
|
Model |
|
SDYG-E 1016 |
|
Capacity |
Q(Kg) |
1000 |
|
Load center |
C(mm) |
450 |
|
Type of lifting |
|
Electric |
|
Operating type |
|
Walkie |
|
Material |
|
Nylon |
|
Quantity Steering/Bearing |
|
2/2 |
|
Wheel base |
Y(mm) |
1074 |
|
Bearing wheel size |
mm |
Φ80×60 |
|
Steering wheel size |
mm |
Φ180×50 |
|
Min.fork height |
H1(mm) |
90 |
|
Max.fork height |
H2(mm) |
1600 |
|

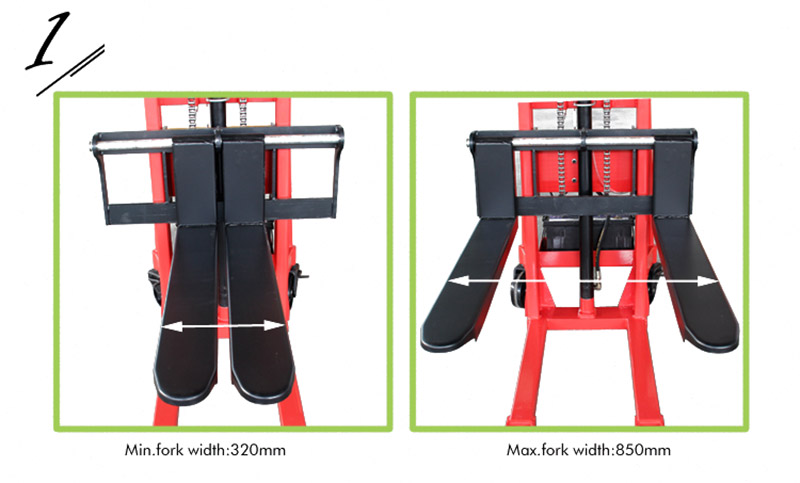

Fork outside width |
E(mm) |
320-850 |
|
Fork inside width |
mm |
20-550 |
|
Fork length |
l(mm) |
1000 |
|
Single fork size |
e/s(mm) |
150/60 |
|

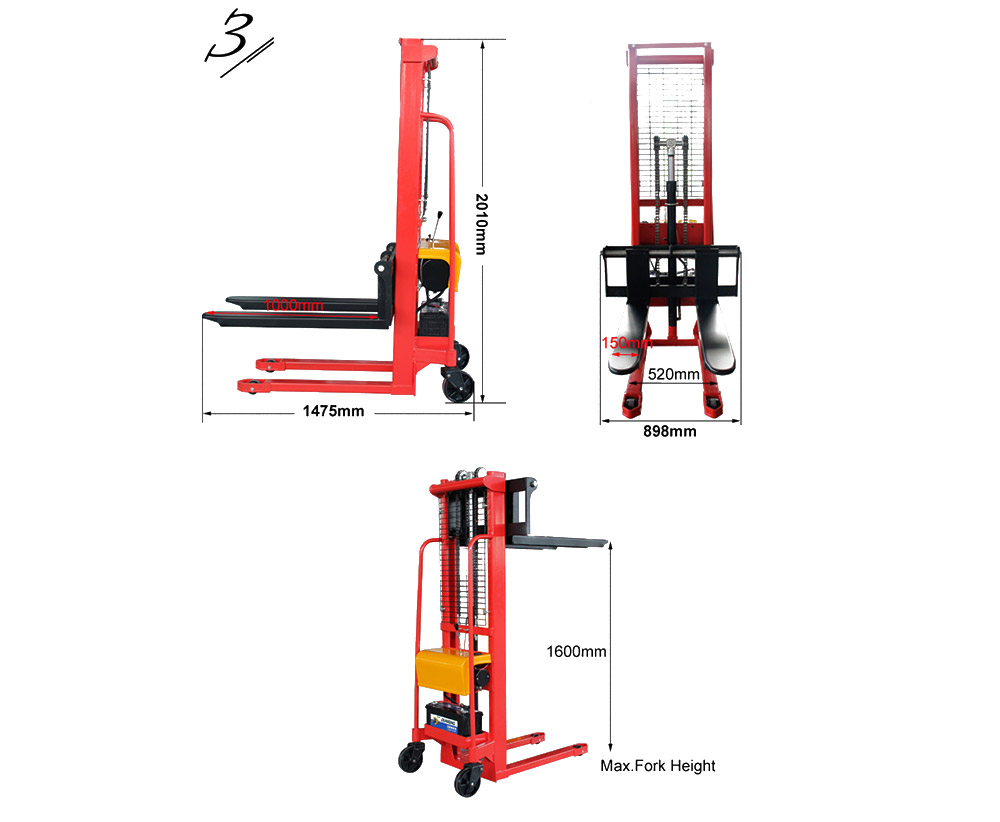

Overall length |
L(mm) |
1475 |
|
Overall width |
B(mm) |
898 |
|
Overall height |
H(mm) |
2000 |
|
Table size |
mm |
1510 |
|
Min.turning radius |
Wa(mm) |
1350 |
|
Lifting speed(laden/unladen) |
mm/s |
40-50/85-95 |
|
Lowering speed(laden/unladen) |
mm/s |
90-110/85-95 |
|
Lift motor |
Kw |
12V1.5 |
|
Battery capacity |
V/Ah |
12/120 |
|
Battery weight |
Kg |
28 |
|
Net weight |
Kg |
290 |
