QUICK OVERVIEW

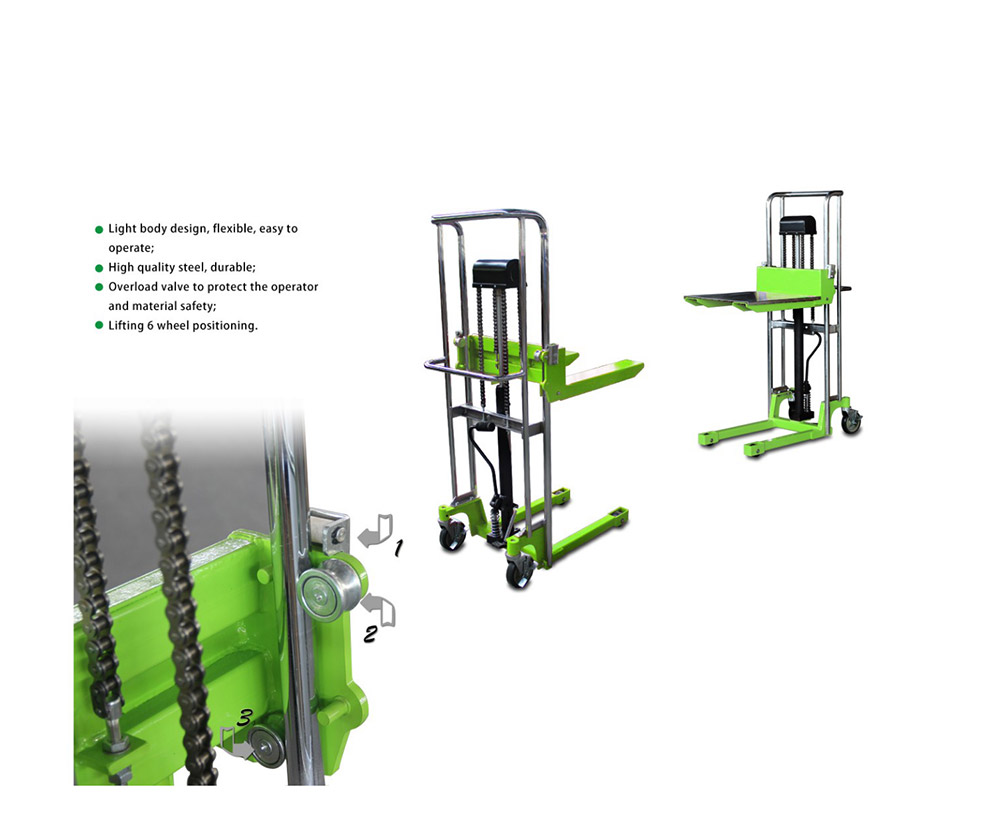

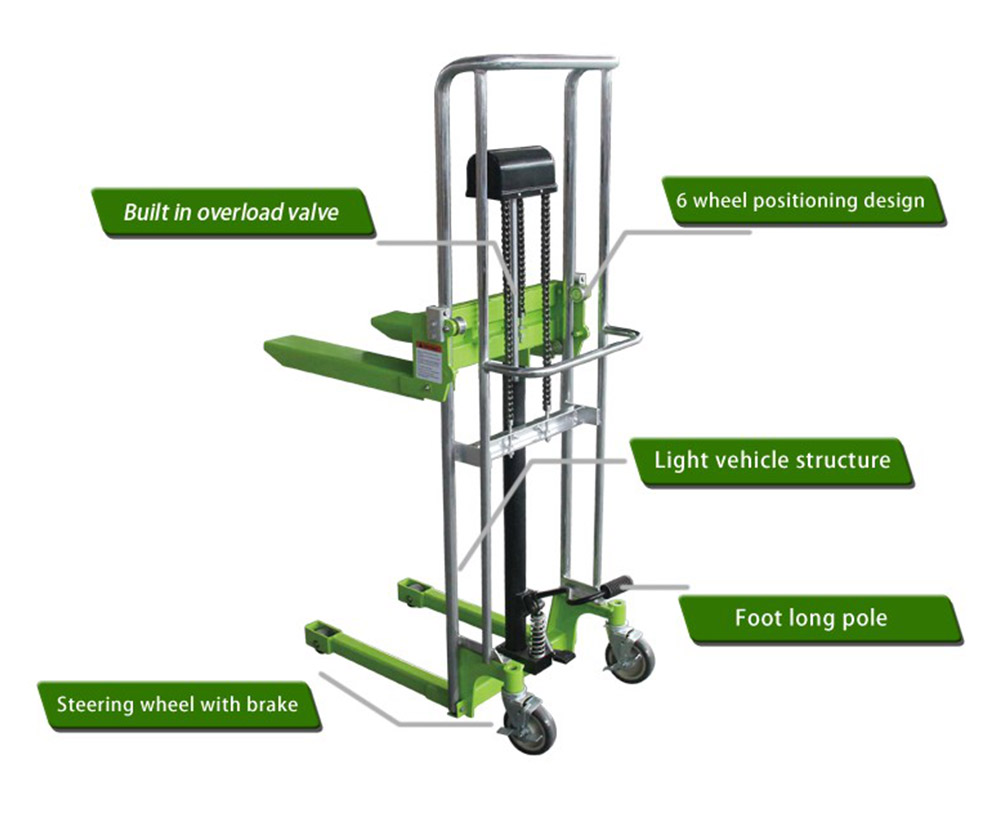

FEATURES: 1.Economic car body design,flexible,easy to operate 2.High quality steel,durable 3.Overall valve to protect the operator and material safety
Contact us
SPECIFICATION:
|
Model |
|
SYG-Q 0411 |
SYG-Q 0413 |
SYG-Q 0415 |
|
Capacity |
Q(Kg) |
400 |
400 |
400 |
|
Load center |
C(mm) |
350 |
350 |
350 |
|
Type of lifting |
|
Foot |
Foot |
Foot |
|
Operating type |
|
Walkie |
Walkie |
Walkie |
|
Material |
|
PU/Nylon |
PU/Nylon |
PU/Nylon |
|
Quantity Steering/Bearing |
|
2/2 |
2/2 |
2/2 |
|
Wheel base |
mm |
789 |
789 |
789 |
|
Bearing wheel size |
mm |
Φ75×42 |
Φ75×42 |
Φ75×42 |
|
Steering wheel size |
mm |
Φ150×38 |
Φ150×38 |
Φ150×38 |
|
Min.fork height |
H1(mm) |
90 |
90 |
90 |
|
Max.fork height |
H2(mm) |
1100 |
1300 |
1500 |
|
Fork outside width |
mm |
550 |
550 |
550 |
|
Fork inside width |
mm |
310 |
310 |
310 |
|
Fork length |
L1(mm) |
615 |
615 |
615 |
|
Single fork size |
e/s(mm) |
120/60 |
120/60 |
120/60 |
|
Overall length |
L(mm) |
1000 |
1000 |
1000 |
|
Overall width |
E(mm) |
610 |
610 |
610 |
|
Overall height |
H(mm) |
1370 |
1570 |
1770 |
|
Min.ground clearance |
mm |
30 |
30 |
30 |
|
Min.turning radius |
Wa(mm) |
1022 |
1022 |
1022 |
|
Max. pump pressure |
times |
≤35 |
≤42 |
≤48 |
|
Lowering speed(laden/unladen) |
mm/s |
Foot control |
Foot control |
Foot control |
|
Net weight |
Kg |
94 |
100 |
105 |
