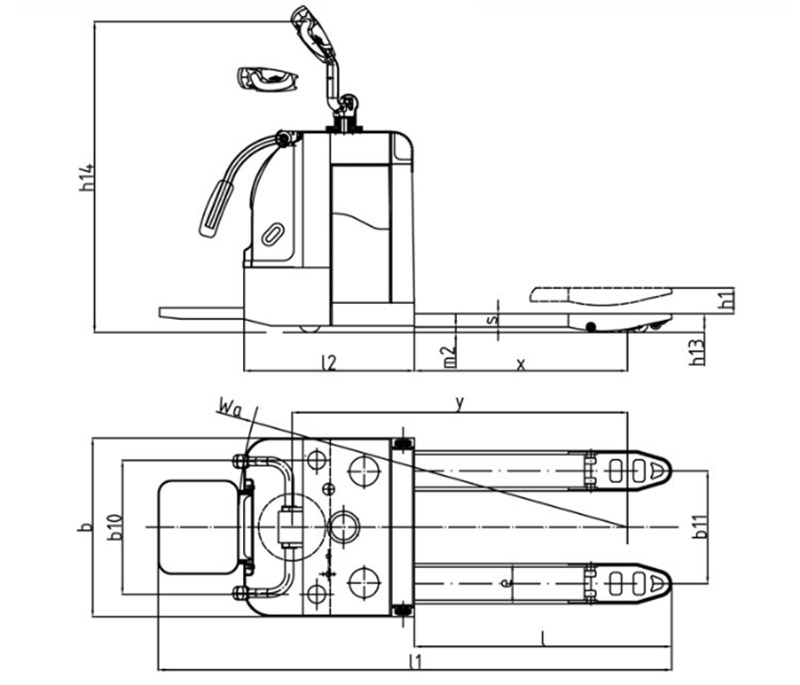

SPECIFICATION:
|
Model |
|
CBD30 |
|
Capacity |
Q(Kg) |
3000 |
|
Load center |
C(mm) |
600 |
|
Type of lifting |
|
Electric |
|
Operating type |
|
Walkie/Stand |
|
Material |
|
PU |
|
Wheel base |
y(mm) |
1500 |
|
Quantity Driving/Balance/Bearing |
|
1×+2/4 |
|
Bearing wheel size |
mm |
Φ80×70 |
|
Driving wheel size |
mm |
Φ230×75 |
|
Balance wheel size |
mm |
Φ100×50 |
|
Min.fork height |
h13(mm) |
85 |
|
Max.fork height |
h1(mm) |
200 |
|
Max.lifting height |
mm |
115 |
|
Fork outside width |
mm |
560/685 |
|
Fork inside width |
mm |
200/325 |
|
Fork length |
l(mm) |
1150 |
|
Single fork size |
e/s(mm) |
180/60 |
|

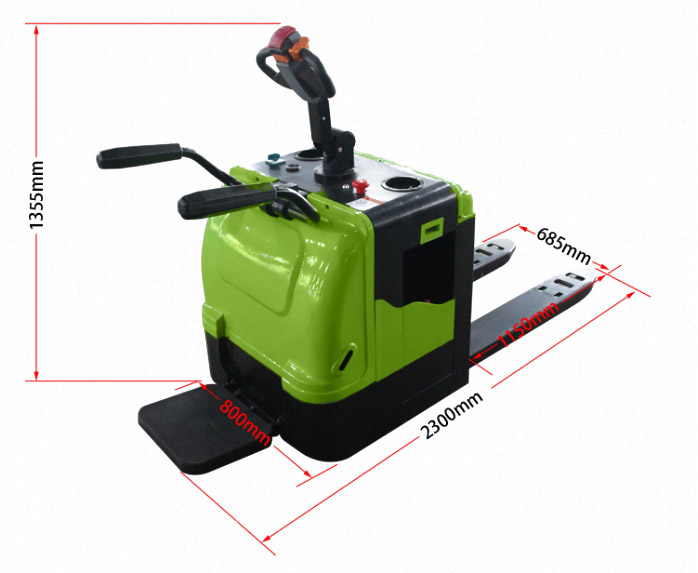

Overall length(when pedal is down) |
l1(mm) |
2300 |
|
Overall width |
b(mm) |
800 |
|
Overall height |
mm |
1355 |
|
Handle vertical height (Min/Max) |
h14(mm) |
1040/1355 |
|
Min.turning radius |
Wa(mm) |
1745 |
|
Travel speed(laden/unladen) |
km/h |
5/6 |
|
Lifting speed(laden/unladen) |
mm/s |
21.6/35.5 |
|
Lowering speed(laden/unladen) |
mm/s |
28.6/25 |
|
Fast/slow adjustment function |
|
Yes |
|
Gradeability |
% |
6 |
|

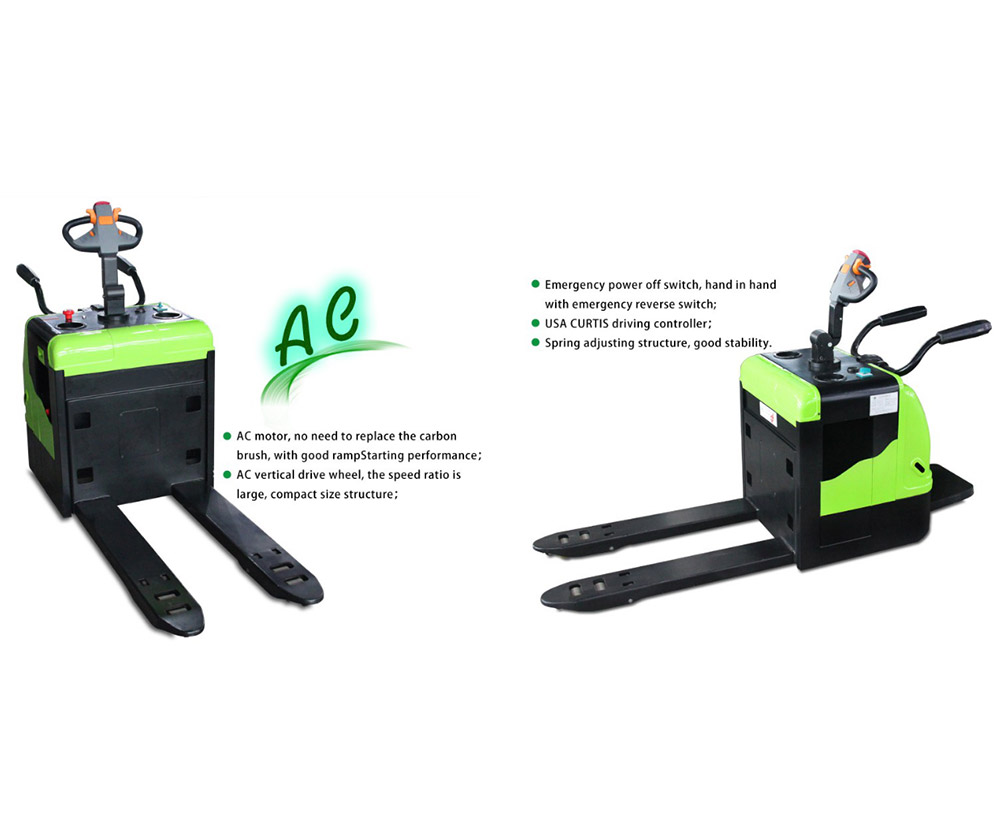

Driving mode |
|
AC |
|
Drive motor |
Kw |
24V2.5 |
|
Lift motor |
Kw |
24V2.2 |
|
Battery capacity |
V/Ah |
24V/280 |
|
Charger |
|
24V30A |
|
Battery weight |
Kg |
250 |
|
Net weight |
Kg |
750 |
