CBD 15K
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

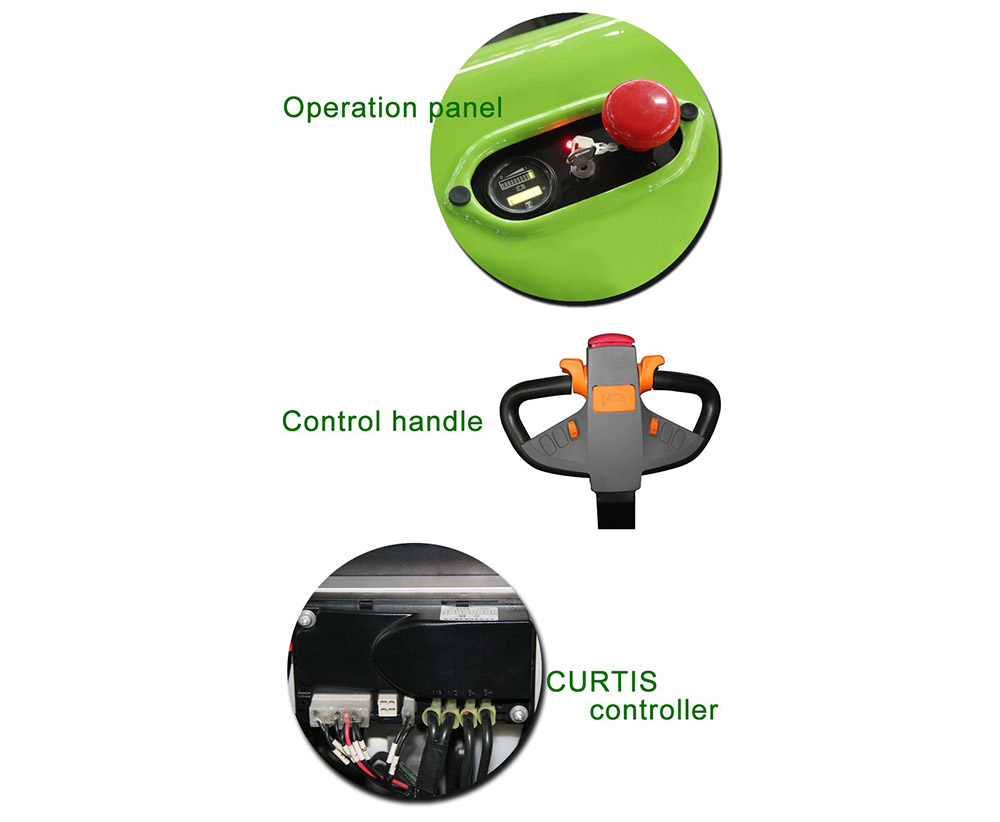

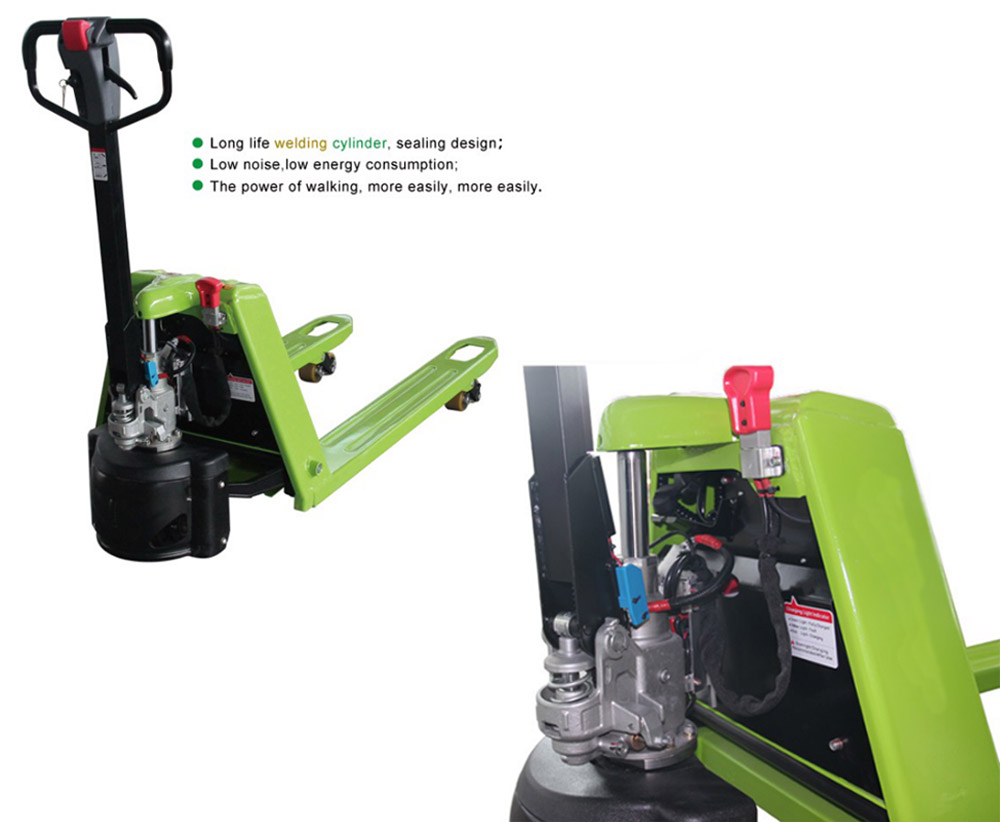

FEATURE:1. Low noise,low energy consumption. 2.Small body,easy to operate. 3.Sealed batteries free of maintenance.safe operation and no pollution. 4.USA CURTIS driving controller. 5. Emergency brake switch.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

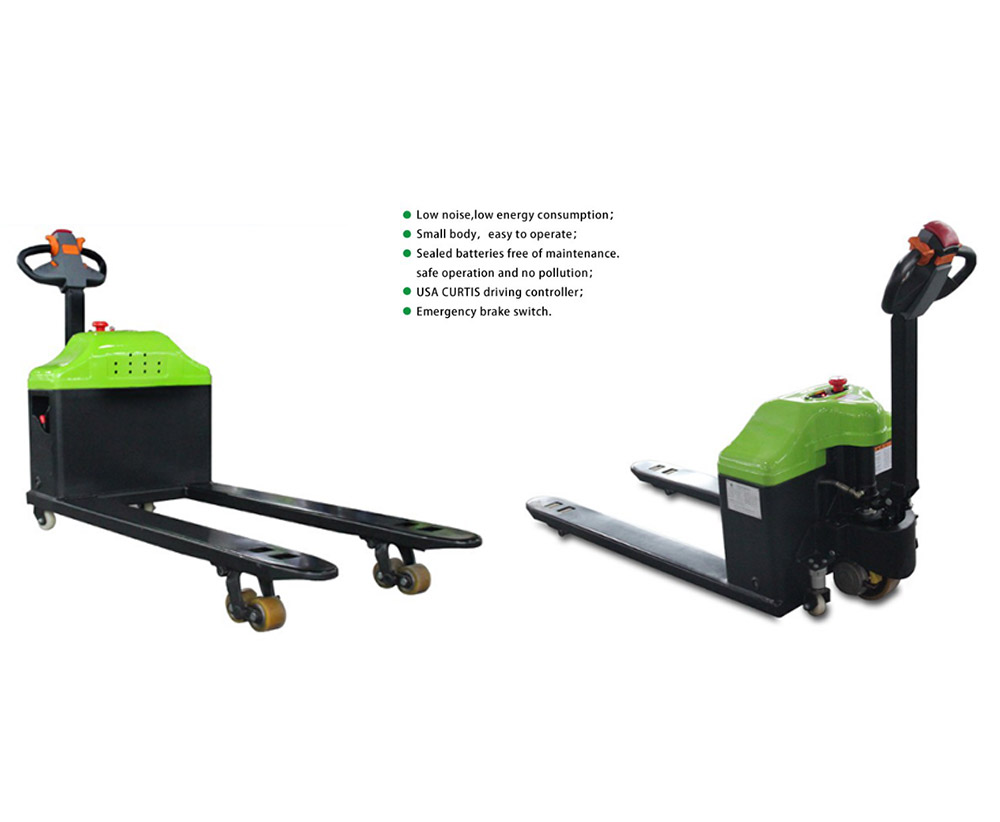

FEATURE:1. Low noise,low energy consumption. 2.Small body,easy to operate. 3.Sealed batteries free of maintenance.safe operation and no pollution. 4.USA CURTIS driving controller. 5. Emergency brake switch.
Contact us

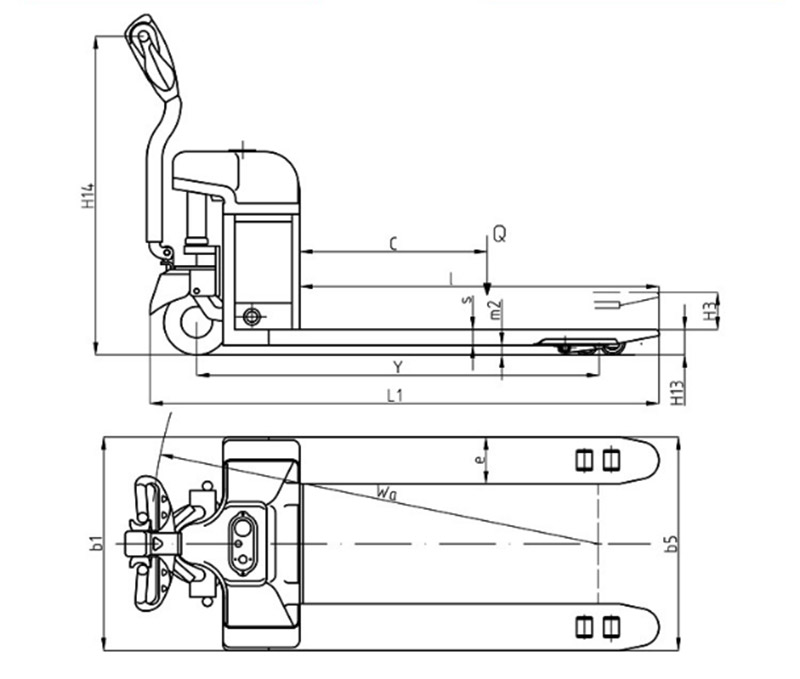

SPECIFICATION:
| Model | CBD15K | |
| Capacity | Q(Kg) | 1500 |
| Load center | C(mm) | 600 |
| Type of lifting | Electric | |
| Operating type | Battery-driven | |
| Material | PU | |
| Wheel base | Y(mm) | 1285 |
| Quantity Driving/Balance/Bearing | 1×+2/4 | |
| Bearing wheel size | mm | φ80x70 |
| Driving wheel size | mm | φ210x71 |
| Balance wheel size | mm | φ75x35 |
| Min.fork height | H13(mm) | 85 |
| Max.fork height | H3(mm) | 200 |
| Max.lifting height | mm | 115 |
| Fork outside width | b5(mm) | 560/685 |
| Fork inside width | mm | 240/365 |
| Fork length | l(mm) | 1150 |
| Single fork size | e/s(mm) | 160/50 |
| Overall length | L1(mm) | 1630 |
| Overall width | b1(mm) | 780 |
| Overall height | mm | 1170 |
| Handle vertical height | h14(mm) | 1170 |
| Min.turning radius | Wa(mm) | 1430 |
| Travel speed(laden/unladen) | km/h | 3.5-4 |
| Lifting speed(laden/unladen) | mm/s | 25-35/35-45 |
| Lowering speed(laden/unladen) | mm/s | 25-30/20-25 |
| Fast/slow adjustment function | Yes | |
| Gradeability | % | ≤3.5 |
| Driving mode | DC | |
| Drive motor | Kw | 0.65 |
| Lift motor | Kw | 0.8 |
| Battery capacity | V/Ah | 2×12/55 |
| Charger | 24V12A | |
| Battery weight | Kg | 34 |
| Net weight | Kg | 200-210 |
