QUICK OVERVIEW

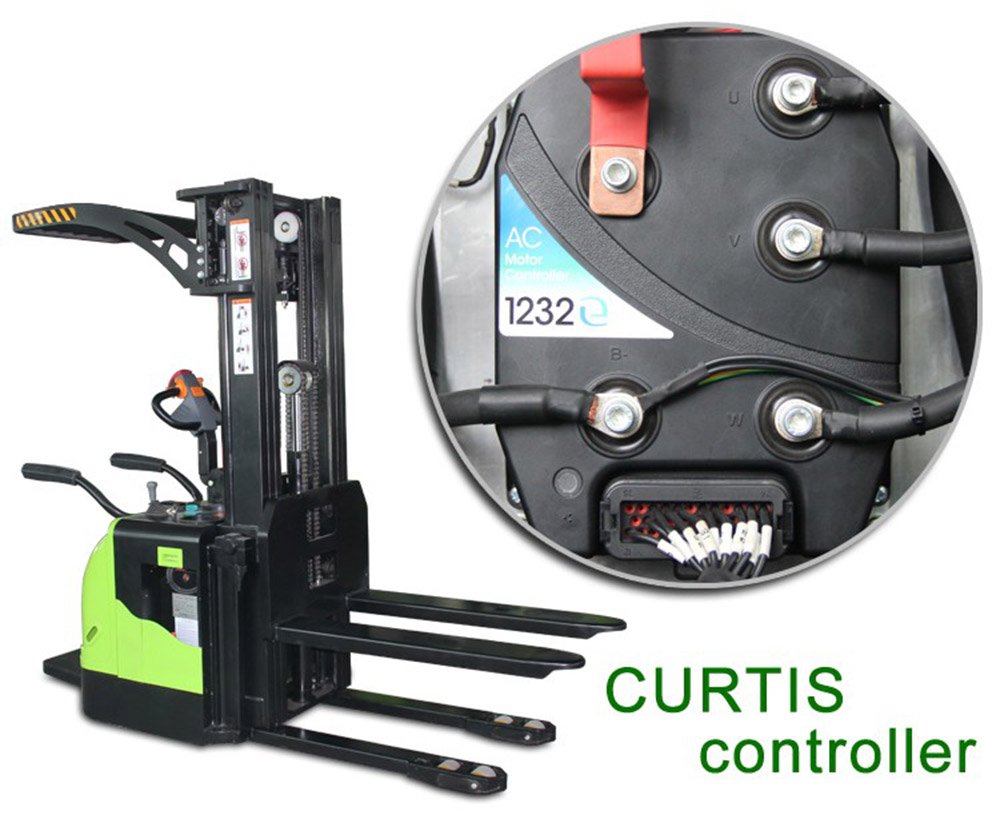

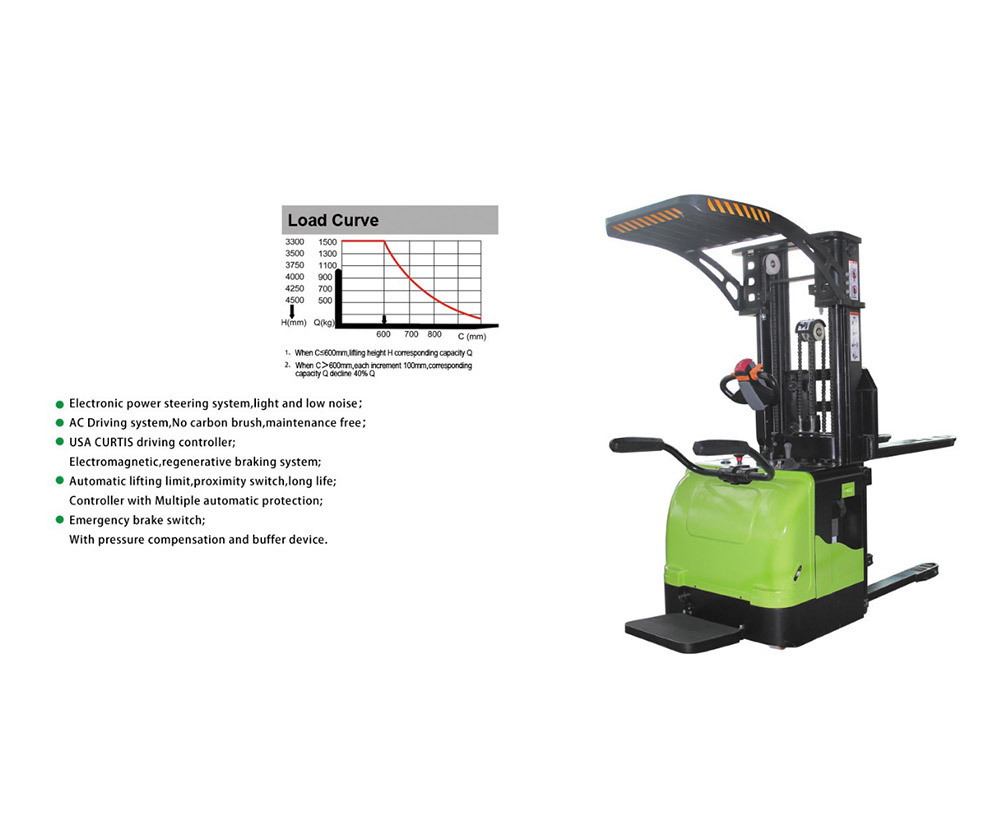

1. Electronic power steering system.light and low noise;2. AC Driving system,no carbon brush,,maintenance free;3. USA CURTIS driving controller,electromagnetic,regenerative braking system; 4. Automatic lifting limit,proximity switch,long life,controller with multiple automatic protection; 5. Emergency brake switch,with pressure compensation and buffer device.
Contact us
SPECIFICATION:
|
Model |
|
CDDYG-Ⅱ 1530/1535 |
CDDYG-Ⅱ 1545 |
|
Capacity |
Q(Kg) |
1500 |
1500 |
|
Load center |
C(mm) |
600 |
600 |
|
Type of lifting |
|
Electric |
Electric |
|
Operating type |
|
Stand |
Stand |
|
Material |
|
PU |
PU |
|
Wheel base |
mm |
1380 |
1380 |
|
Quantity Driving/Balance/Bearing |
|
1×+2/4 |
1×+2/4 |
|
Bearing wheel size |
mm |
Φ80×70 |
Φ80×70 |
|
Driving wheel size |
mm |
Φ230×75 |
Φ230×75 |
|
Balance wheel size |
mm |
Φ100×50 |
Φ100×50 |
|
Front overhang |
mm |
670 |
670 |
|
Wheel track |
Y(mm) |
1380 |
1380 |
|
Front wheel track |
b11(mm) |
515 |
515 |
|
Rear wheel track |
b10(mm) |
645 |
645 |
|
Free lifting height |
mm |
- |
1600 |
|
Min.fork height |
h13(mm) |
90 |
90 |
|
Max.fork height |
h2(mm) |
3000/3500 |
4500 |
|
Fork outside width |
mm |
685 |
685 |
|
Fork inside width |
mm |
345 |
345 |
|
Single fork size |
l/e/s(mm) |
1070×170×60 |
1070×170×60 |
|
Top shelf height |
h(mm) |
- |
2050 |
|
Overall length |
L1(mm) |
2030 |
2030 |
|
Overall width |
b1(mm) |
880 |
880 |
|
Overall height |
h(mm) |
2050/2300 |
2050 |
|
Lifting height of the whole |
h2(mm) |
3500/4000 |
5050 |
|
Min.turning radius |
Wa(mm) |
1635 |
1635 |
|
Front and rear axle load(laden/unladen) |
Kg |
420/900,1020/1800 |
420/900,1020/1800 |
|
Lifting speed(laden/unladen) |
km/h |
5/6 |
5/6 |
|
Lowering speed(laden/unladen) |
mm/s |
90-110/135-165 |
90-110/135-165 |
|
Fast/slow adjustment function |
mm/s |
300/130 |
300/130 |
|
Gradeability(laden/unladen) |
% |
6/8 |
6/8 |
|
Driving mode |
|
AC |
AC |
|
Steering motor |
Kw |
0.165 |
0.165 |
|
Driving motor |
Kw |
1.5 |
1.5 |
|
Lifting motor |
Kw |
3 |
3 |
|
Battery capacity |
V/Ah |
24/280 |
24/280 |
|
Charger |
|
24V30A |
24V30A |
|
Battery weight |
Kg |
250 |
250 |
|
Net weight |
Kg |
1120/1200 |
1320 |
