CQD1545
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

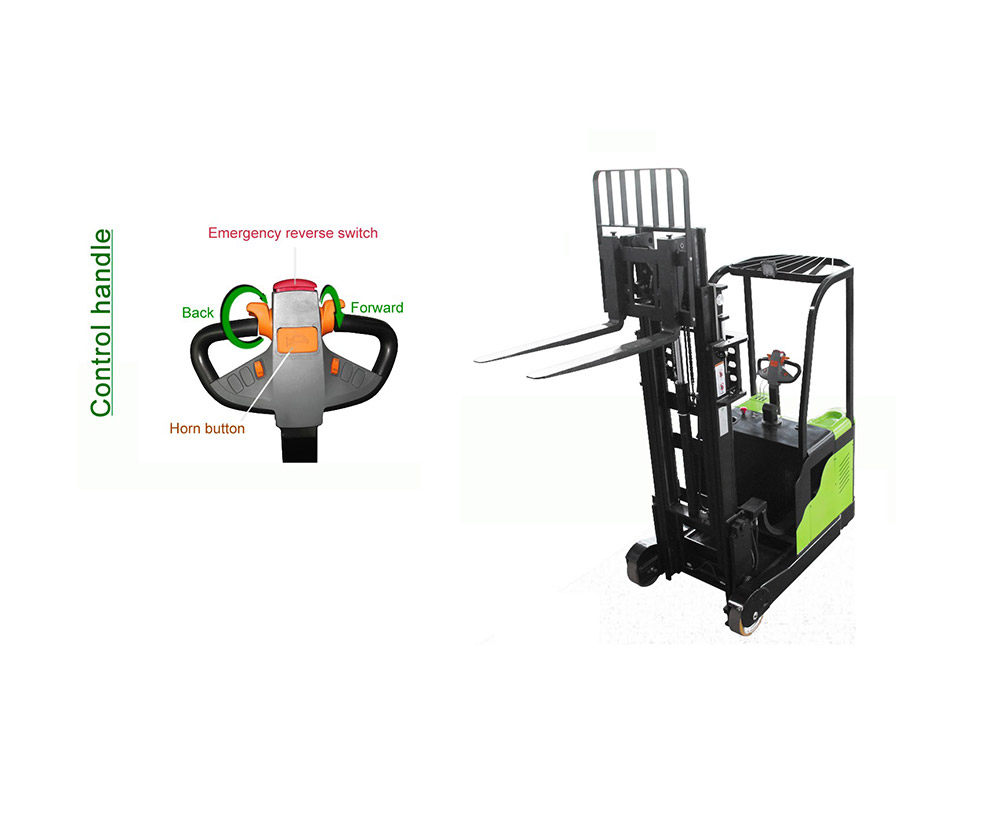

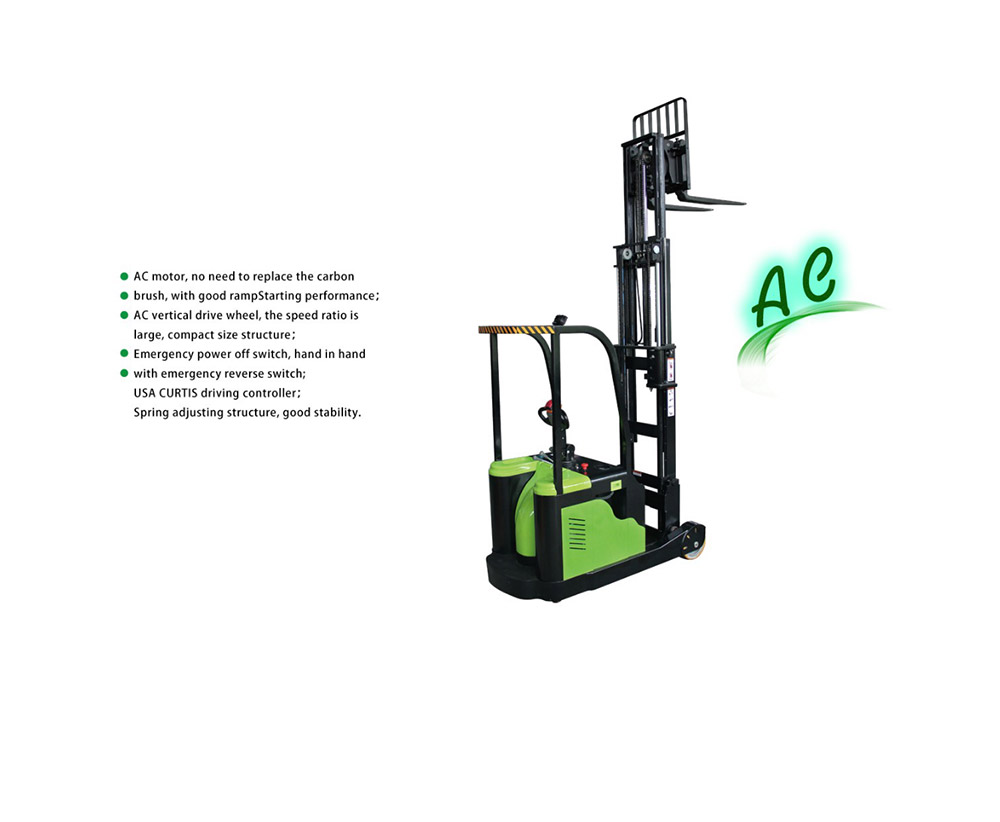

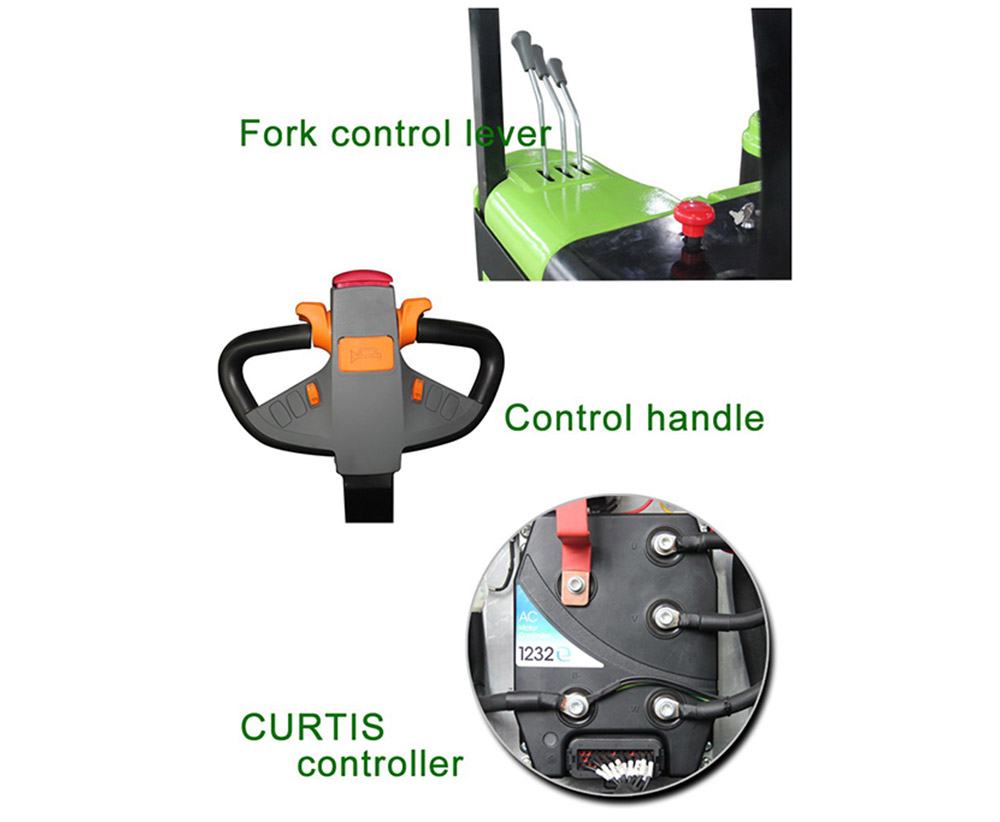

1.AC motor,no need to replace the carbon; 2.Brush with good ramp starting performance; 3.AC vertical drive wheel,the speed ratio is large,compact size structure; 4.Emergency power off switch,hand in hand; 5.With emergency reverse switch,USA CURTIS driving controller,Spring adjusting structure,good stability.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
1.AC motor,no need to replace the carbon; 2.Brush with good ramp starting performance; 3.AC vertical drive wheel,the speed ratio is large,compact size structure; 4.Emergency power off switch,hand in hand; 5.With emergency reverse switch,USA CURTIS driving controller,Spring adjusting structure,good stability.
Contact us

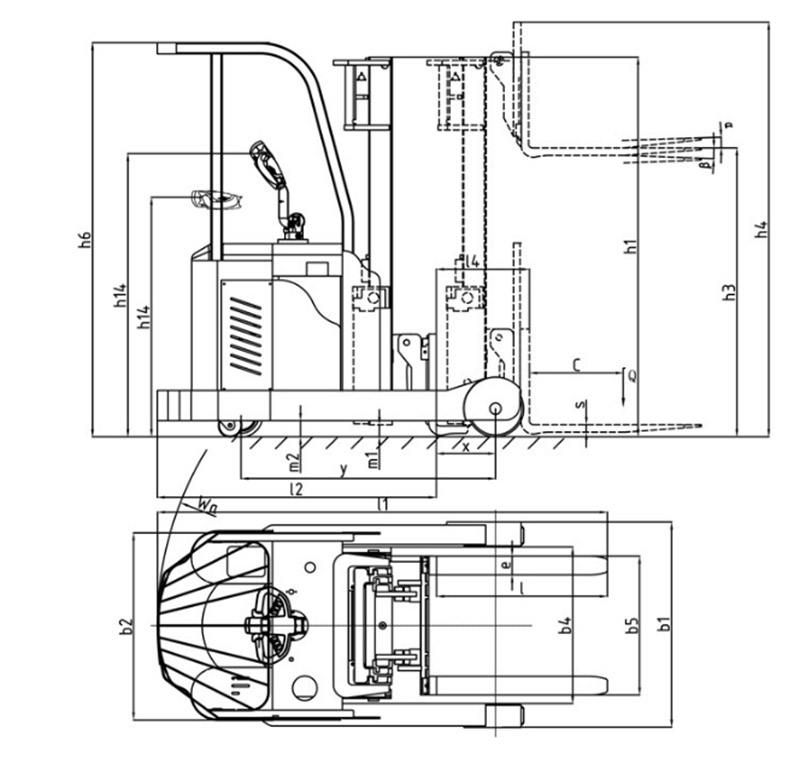

SPECIFICATION:
| Model | unit | CQD1545 |
| Capacity | Q(Kg) | 1500 |
| Load center | C(mm) | 500 |
| Type of lifting | Electric | |
| Operating type | Stand | |
| Material | PU | |
| Wheel base | y(mm) | 1356 |
| Quantity Driving/Balance/Bearing | 1×+2/2 | |
| Bearing wheel size | mm | Φ230×75 |
| Driving wheel size | mm | Φ310×100 |
| Balance wheel size | mm | Φ100×50 |
| Front overhang | x(mm) | 315 |
| Reach distance | l4(mm) | 500 |
| Front wheel track | b11(mm) | 960 |
| Rear wheel track | b10(mm) | 760 |
| Free lifting height | mm | 1180 |
| Min.fork height | mm | 90 |
| Max.fork height | mm | 4500 |
| Outside width between forks | b5(mm) | 400-700 |
| Inside width between forks | mm | 200-500 |
| Single fork size | l/e/s(mm) | 920×100×40 |
| Min.ground clearance | b4(mm) | 730 |
| Overall length | l1(mm) | 2400 |
| Overall width | b1(mm) | 1090/1000 |
| Overall height | h6(mm) | 2050 |
| Lifting height of the whole | h4(mm) | 5380 |
| Min.turning radius | Wa(mm) | 1800 |
| Frame forward speed(laden/unladen) | mm/s | 60/70 |
| Travel speed(laden/unladen) | km/h | 5-6 |
| Lifting speed(laden/unladen) | mm/s | 110/135 |
| Lowering speed(laden/unladen) | mm/s | 300/133 |
| Gradeability(laden/unladen) | % | 6-8 |
| Driving mode | AC | |
| Steering motor | Kw | 0.165 |
| Driving motor | Kw | 24V2.5 |
| Lifting motor | Kw | 24V3 |
| Battery capacity | V/Ah | 24/330 |
| Charger | 24V50A | |
| Battery weight | Kg | 300 |
| Net weight | Kg | 2200 |
