CPD12G-1230
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

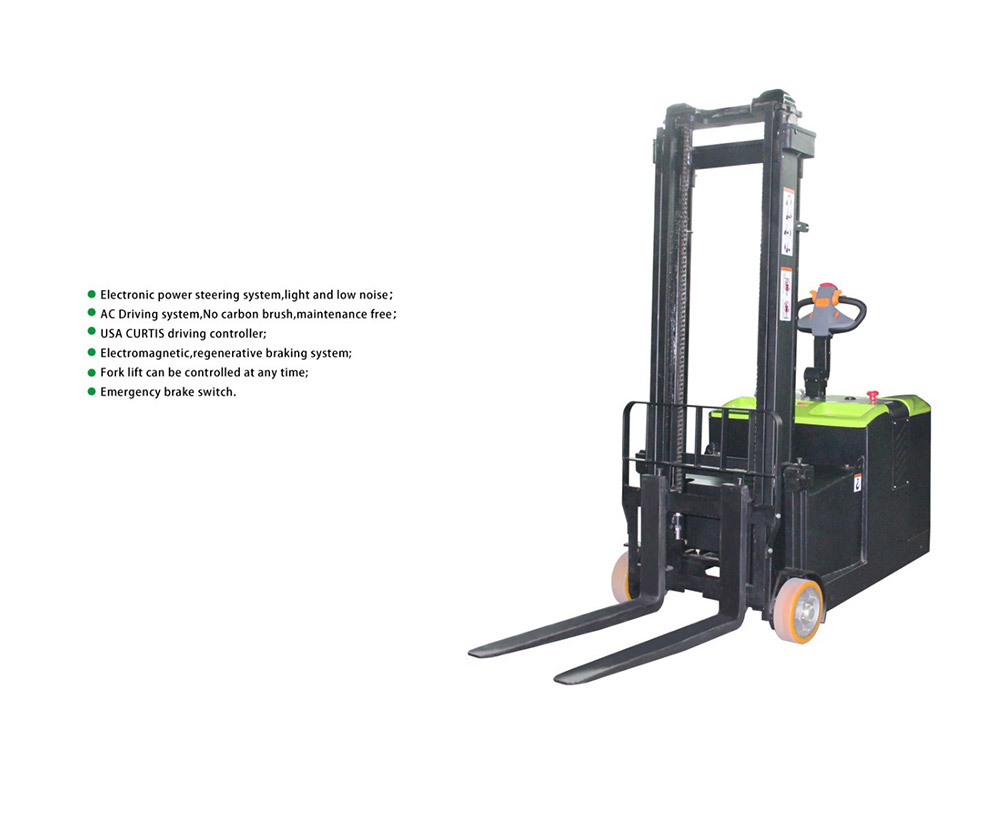

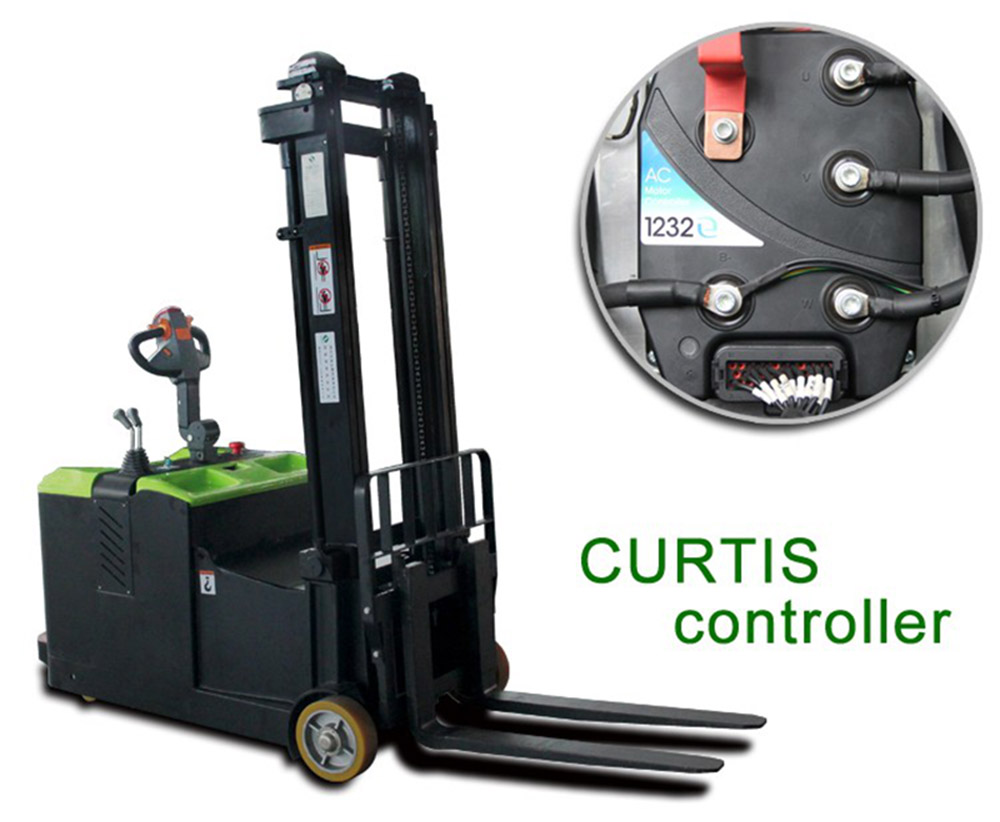

1. Electronic power steering system,light and low noise; 2.AC Driving system,no carbon brush,maintenance free; 3.USA CURTIS driving controller; 4.Electromagnetic,regenerative braking system; 5.Fork lift can be controlled at any time; 6.Emergency brake switch.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
1. Electronic power steering system,light and low noise; 2.AC Driving system,no carbon brush,maintenance free; 3.USA CURTIS driving controller; 4.Electromagnetic,regenerative braking system; 5.Fork lift can be controlled at any time; 6.Emergency brake switch.
Contact us
SPECIFICATION:

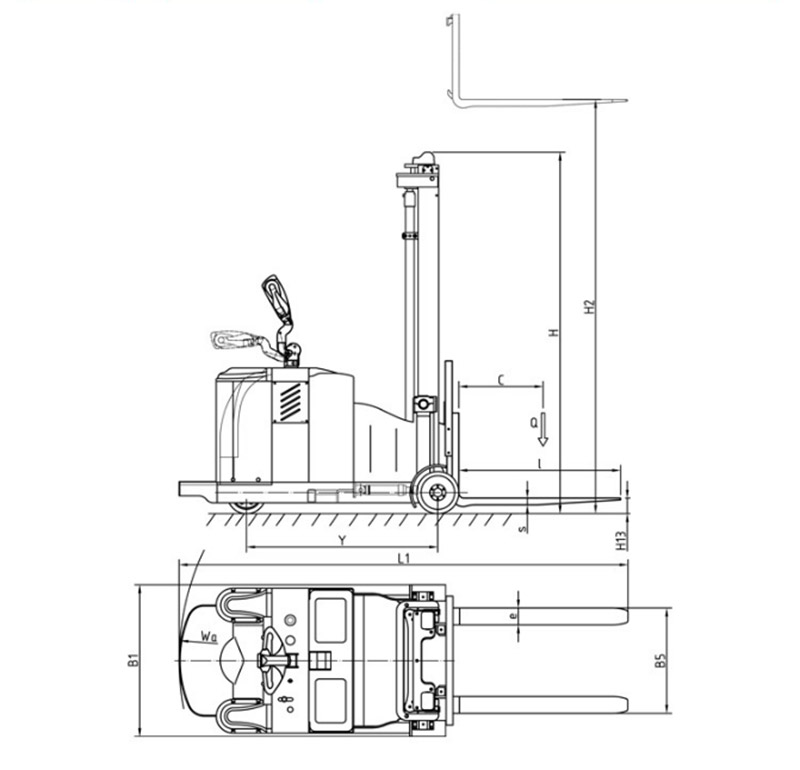

| Model | unit | CPD12G-1225 | CPD12G-1230 |
| Capacity | Q(Kg) | 1250 | 1250 |
| Load center | C(mm) | 500 | 500 |
| Type of lifting | Electric | Electric | |
| Operating type | Stand | Stand | |
| Material | PU | PU | |
| Wheel base | Y(mm) | 1136 | 1136 |
| Quantity Driving/Balance/Bearing | 1X+2/2 | 1X+2/2 | |
| Bearing wheel size | mm | Φ252X80 | Φ252X80 |
| Driving wheel size | mm | Φ230X80 | Φ230X80 |
| Balance wheel size | mm | Φ100X50 | Φ100X50 |
| Front overhang | mm | 155 | 155 |
| Front wheel track | mm | 830 | 830 |
| Rear wheel track | mm | 620 | 620 |
| Angle of inclination(Forward/Lean back) | 2°/5° | 2°/5° | |
| Min.fork height | H13(mm) | 90 | 90 |
| Max.fork height | H2(mm) | 2500 | 3000 |
| Outside width between forks | mm | 220-685 | 220-685 |
| Inside width between forks | mm | 20-485 | 20-485 |
| Single fork size | l/e/s(mm) | 920X100X40 | 920X100X40 |
| Overall length | L1(mm) | 2620 | 2620 |
| Overall width | B1(mm) | 950 | 950 |
| Overall height | H(mm) | 1890 | 2140 |
| Lifting height of the whole | mm | 3600 | 3600 |
| Min.turning radius | Wa(mm) | 1543 | 1543 |
| Travel speed(laden/unladen) | km/h | 6-7 | 6-7 |
| Lifting speed(laden/unladen) | mm/s | 120-130/170-180 | 120-130/170-180 |
| Lowering speed(laden/unladen) | mm/s | 300/180 | 300/180 |
| Gradeability(laden/unladen) | % | 6-10 | 6-10 |
| Driving mode | 銆€ | AC | AC |
| Steering motor | Kw | 0.165 | 0.165 |
| Driving motor | Kw | 2.5 | 2.5 |
| Lifting motor | Kw | 3 | 3 |
| Battery capacity | V/Ah | 24/240 | 24/240 |
| Charger | 24V30A | 24V30A | |
| Battery weight | Kg | 230 | 230 |
| Net weight | Kg | 1600 | 1600 |
