SYP-H1035
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

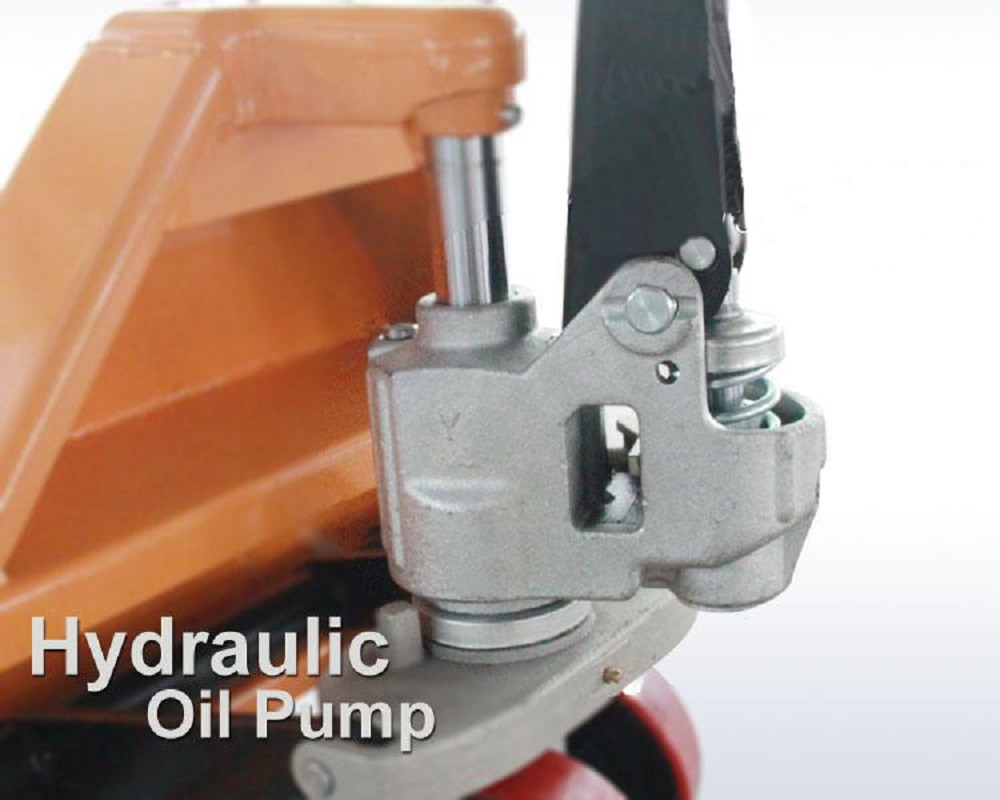

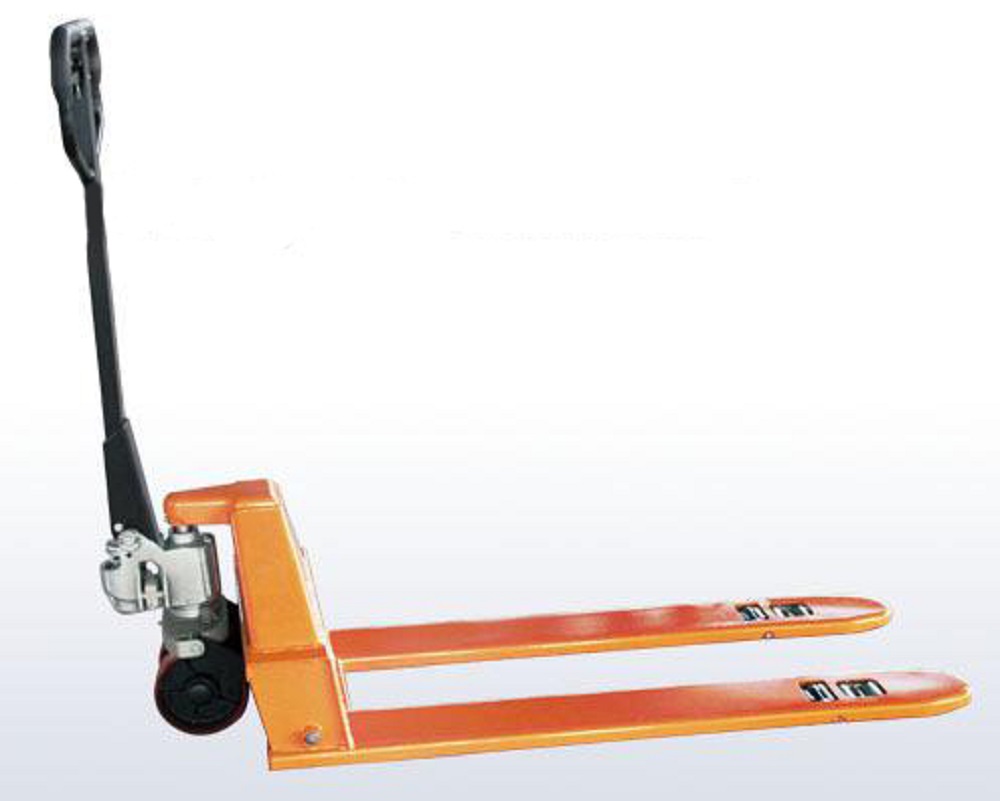

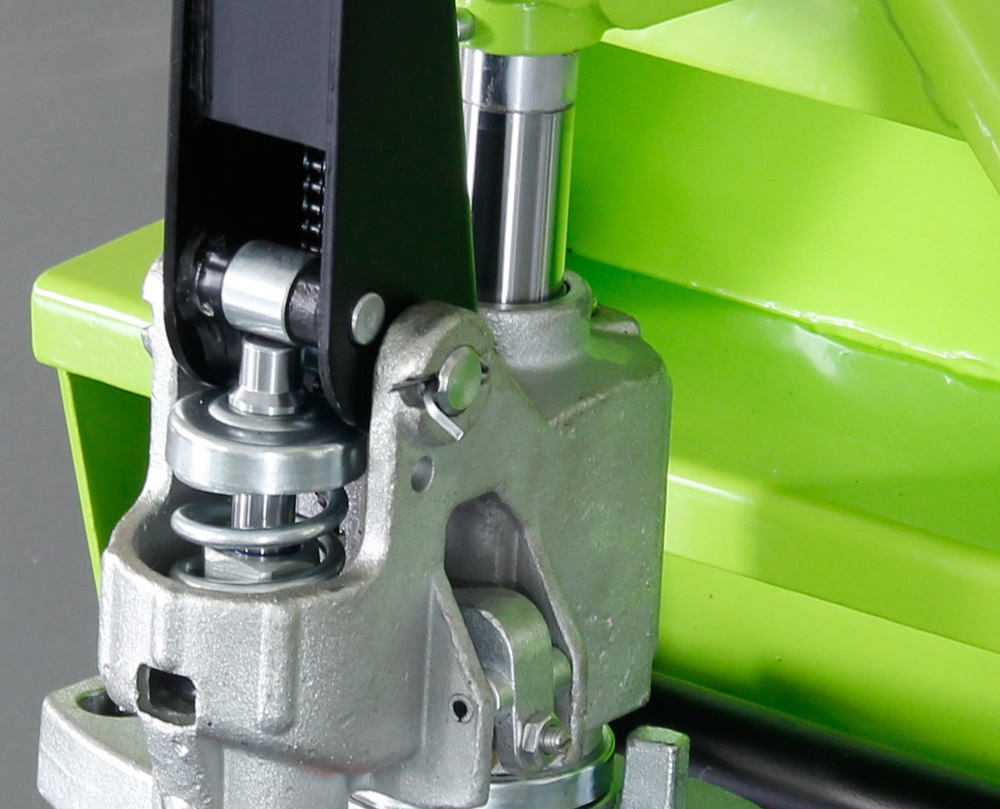

1.Long life welding cylinder,sealing design; 2.Three section type handle: Rise, Fall, Middle position; 3.The pallet truck design is compact,the operation is simple and convenient; 4.High strength and high quality steel plate,stable,full loading without impact force.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
1.Long life welding cylinder,sealing design; 2.Three section type handle: Rise, Fall, Middle position; 3.The pallet truck design is compact,the operation is simple and convenient; 4.High strength and high quality steel plate,stable,full loading without impact force.
Contact us
Specification:
| Item | Unit | SYP-H1035 | SYP-H1051 |
| Capacity | kg | 1000Kg | 1500 |
| Min.Fork Height | mm | 35mm | 51 |
| Max.Fork Height | mm | 90mm | 140 |
| Max.Lifting Height | mm | ≥55mm | ≥110 |
| Fork Width | mm | 540/685mm | 520/540/685 |
| Fork Length | mm | 1220mm | 915/1100/1150/1220 |
| Fork Size | mm | 160×27mm | 160×37 |
| Tandem Loading Wheel | mm | Φ33×58mm | Φ50×70 |
| Steering Wheel | mm | Φ160×50mm | Φ160×50 |
| Material of loading Wheel | PU/Iron | PU | |
| Overall Weight | kg | 78Kg | 78 |
