SYP-III
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

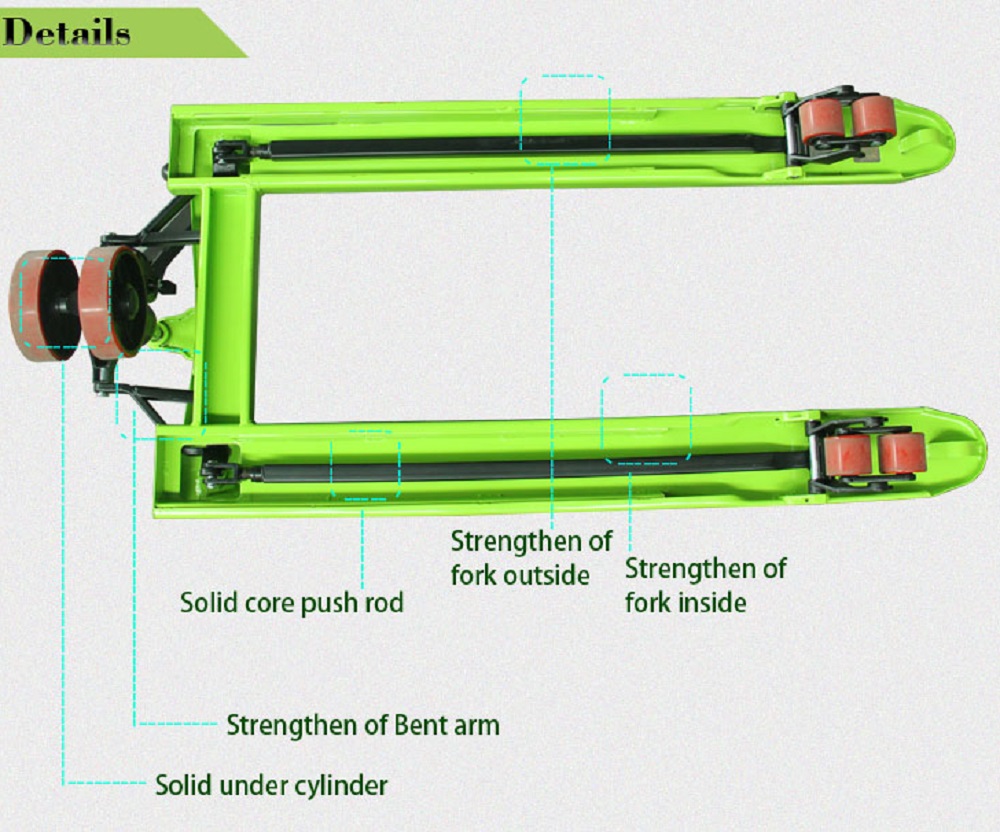

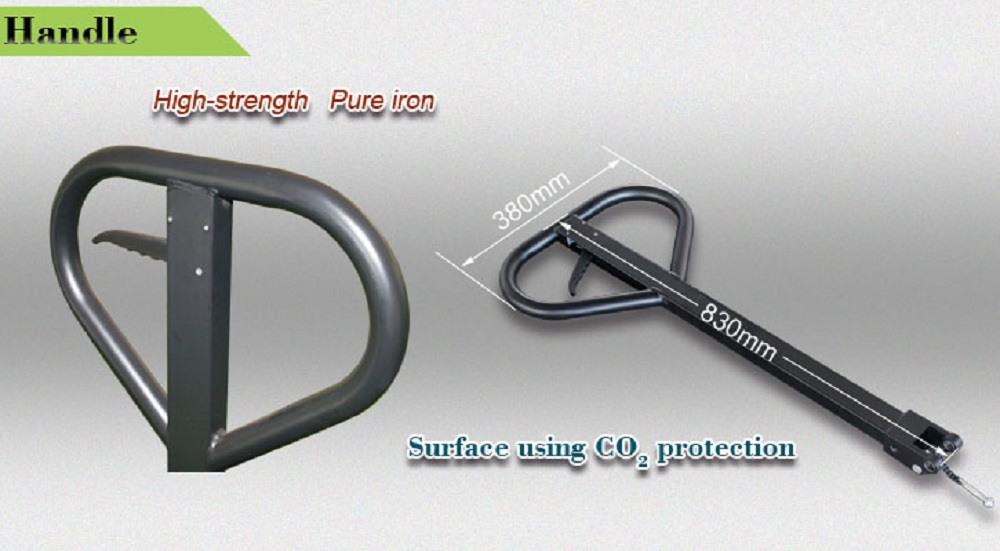

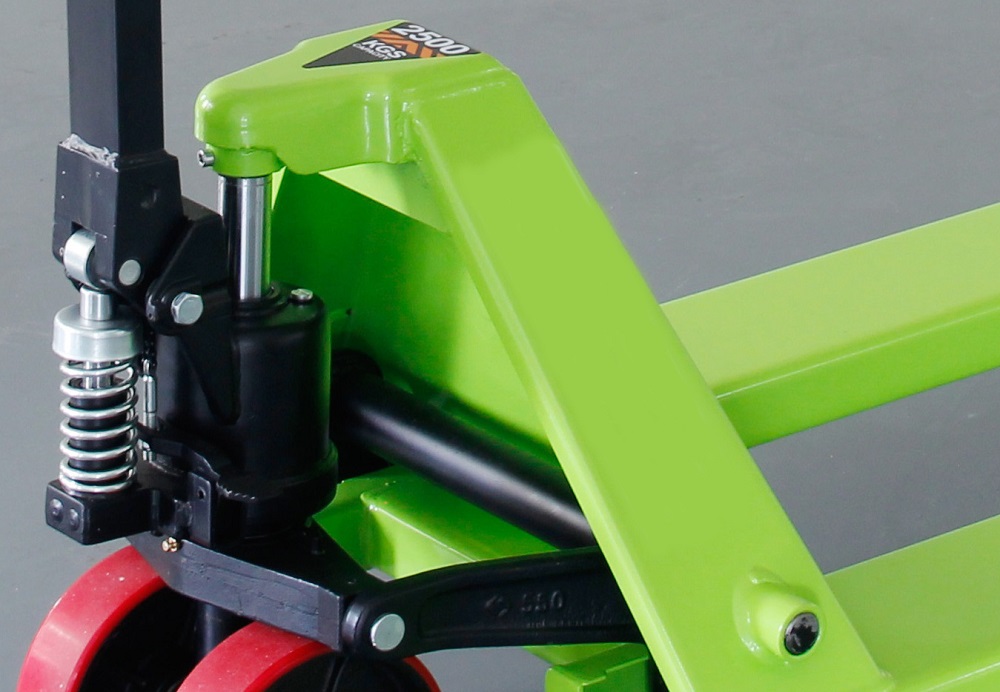

1.Light structure design; 2.Three section type handle: Rise, Fall, Middle position; 3.Vehicle lightweight, flexible operation; 4.New large oil cylinder, long service life.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
1.Light structure design; 2.Three section type handle: Rise, Fall, Middle position; 3.Vehicle lightweight, flexible operation; 4.New large oil cylinder, long service life.
Contact us
SPECIFICATION:

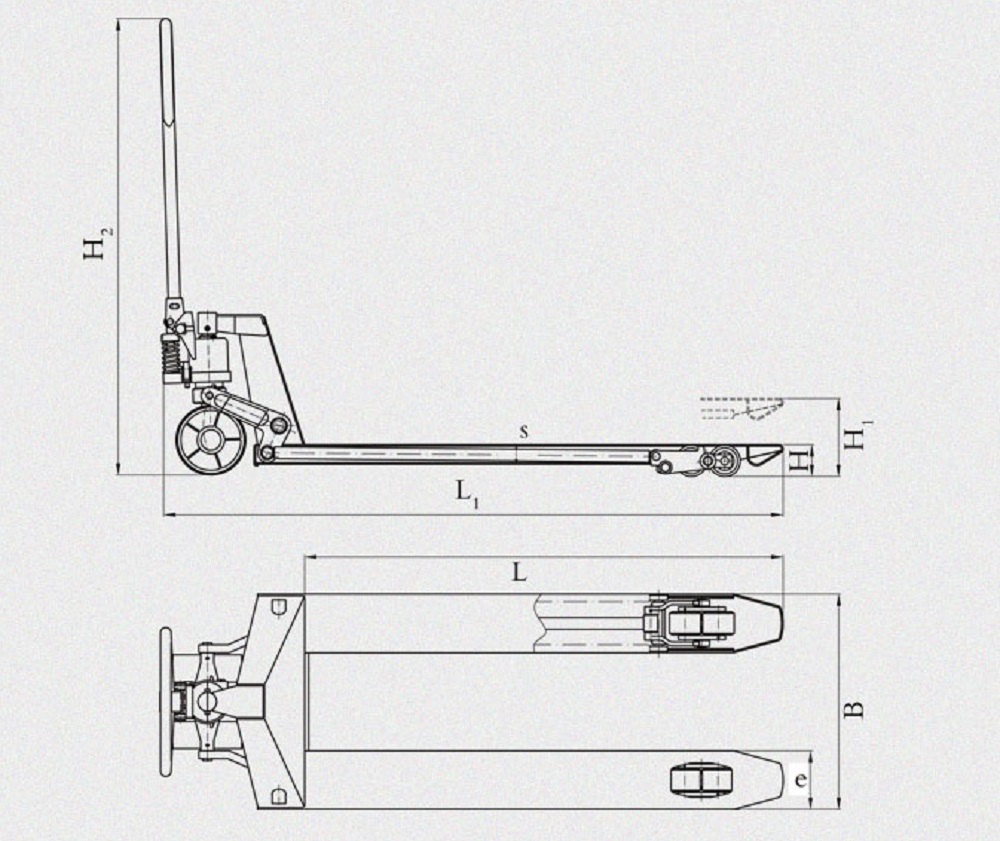

| Model | Unit | SYP-III |
| Capacity | Kg | 2000 |

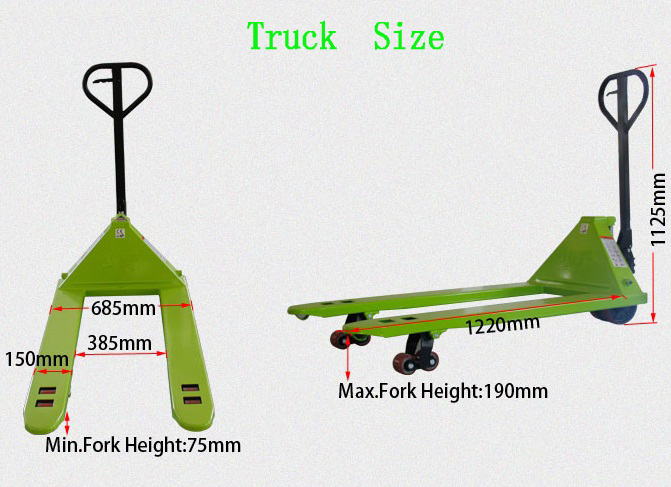

| Min.fork height | H(mm) | 75 |
| Max.fork height | H1(mm) | 190 |
| Max.lifting height | mm | ≥110 |
| Fork outside width | B(mm) | 450/520/550/685 |
| Fork inside width | mm | 150/220/250/385 |
| Fork length | L(mm) | 900/1150/1220 |
| Single fork width | e(mm) | 150 |
| Fork height | s(mm) | 50 |
| Overall length | L1(mm) | 1273-1508 |
| Overall width | mm | 450/520/550/685 |
| Overall height | H2(mm) | 1125 |

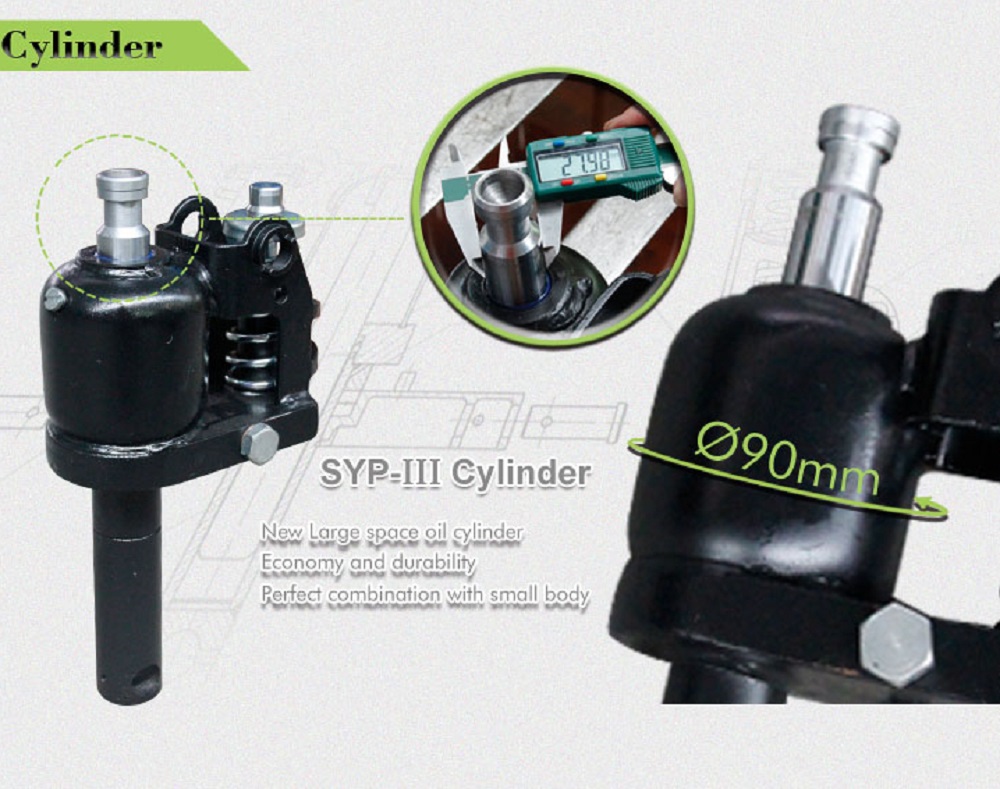

| Cylinder lift rod diameter | mm | Φ28 |
| Single loading wheel size | mm | Φ70×80 |
| Tandem loading wheel size | mm | Φ70×60 |
| Steering wheel size | mm | Φ180×50 |
| Min.turning radius | mm | 1080/1350/1400 |
| Material of wheel | PU/Nylon/Rubber | |
| Net weight | Kg | 50-73 |
| Style | 520*1150 | 550*1150 | 685*1150 | 520*1220 | 550*1220 | 685*1220 |
| Nylon | 50 | 55 | 61 | 53 | 58 | 67 |
| PU | 55 | 60 | 66 | 59 | 64 | 73 |
| Specifications(1 Wooden pallet) | Weight(Kg) | Volume(m3) | 40HQ(piece) | 20GP(piece) |
| 2T 520*1150 NL | 324 | 0.78 | 396 | 198 |
| 2T 520*1150 PU | 348 | 0.78 | 396 | 198 |
| 2T 550*1150 NL | 336 | 0.84 | 378 | 180 |
| 2T 550*1150 PU | 360 | 0.84 | 378 | 180 |
| Nylon,PU,Rubber,Single Loading Wheel,Tandem Loading Wheel. |
| suggestion: |
| Nylon casters with high hardness, go up the sound, but need some smaller thrust; |
| Polyurethane with low hardness, go up small noise, pushing heavy items of labor. |
