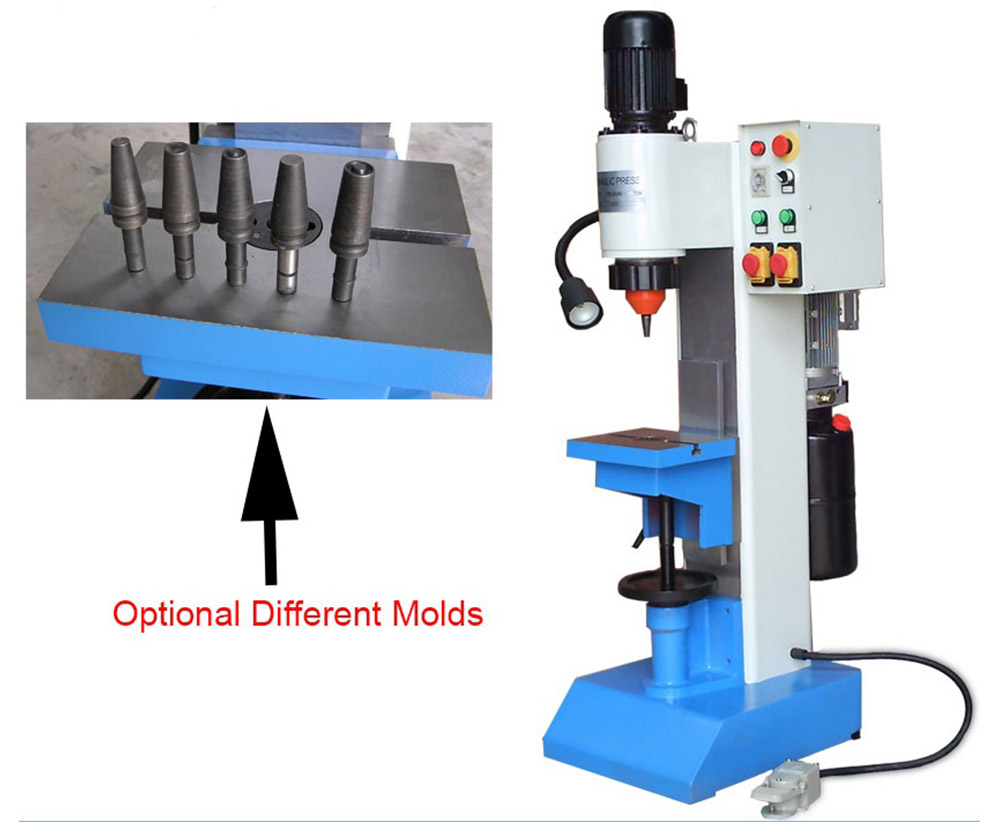

XM-20 electric riveter
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Feature: XM series riveting machine is one new-style rolling riveter developed according to the principle of cold rolling work. Compared to the traditional riveting technology, it has the following obvious advantage: 1. Workpiece can keep fit without deformation after riveting as the riveting forming pressure is small which is only 1/10 pressure of the normal punch riveting. 2. Smooth and nice appearance after riveting. 3. No vibration, low noise, low energy consumption. 4. High efficiency and low cost. 5. Safe and easy operation. Therefore the rolling riveting is replacing the traditional methods such a hammering, punching and hot riveting. Now they are extensively used in automobile and motorcycle manufacturing, light industry manufacturing, appliance and instrument, and hardware tools ect. With optional tools, it can rivet without the rivet and to be used as the normal press
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Feature: XM series riveting machine is one new-style rolling riveter developed according to the principle of cold rolling work. Compared to the traditional riveting technology, it has the following obvious advantage: 1. Workpiece can keep fit without deformation after riveting as the riveting forming pressure is small which is only 1/10 pressure of the normal punch riveting. 2. Smooth and nice appearance after riveting. 3. No vibration, low noise, low energy consumption. 4. High efficiency and low cost. 5. Safe and easy operation. Therefore the rolling riveting is replacing the traditional methods such a hammering, punching and hot riveting. Now they are extensively used in automobile and motorcycle manufacturing, light industry manufacturing, appliance and instrument, and hardware tools ect. With optional tools, it can rivet without the rivet and to be used as the normal press
Contact us
SPECIFICATION:
| Model | XM-30 | XM-20 | XM-16 | XM-8 |
| Max. riveting dia. | 30 mm | 20 mm | 16 mm | 8 mm |
| Max. pressure | 100 Kn | 65 Kn | 34 Kn | 14 Kn |
| Max. spindle travel | 30 mm | 30 mm | 50 mm | 30 mm |
| Max. distance from head to table | 300 mm | 250 mm | 220 mm | 275 mm |
| Table size | 500x355 mm | 420x300 mm | 350x250 mm | 250x200 mm |
| Over dimension | 130x58x220 cm | 107x50x193 cm | 80x58x185 cm | 70x50x148cm |
| N/G Weight | 1500/1550kg | 850/900kg | 470/490kg | 270/290kg |
|
|
||||
| Standard accessories: | ||||
| NO | ||||
| Optional accessories: | ||||

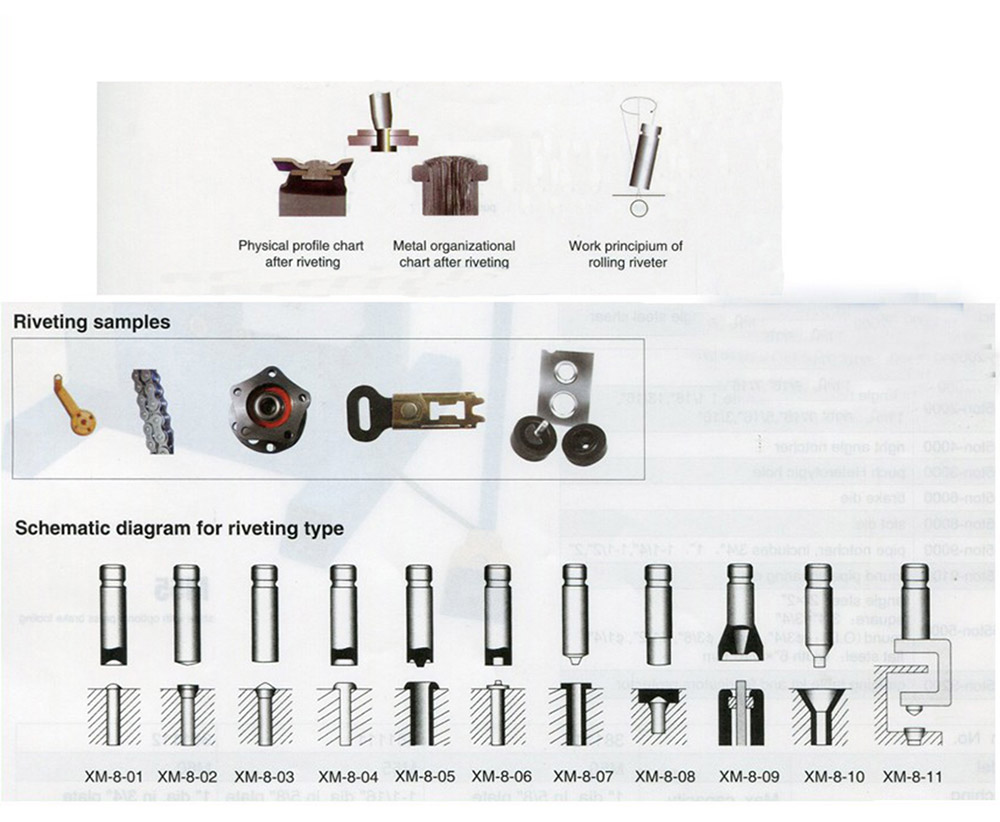

| 11 kinds of dies |
