SPS-16RT
Order No.:
Stock: 1-10
Delivery Time: 30
Without Tax: $
Machine video: 20000-22000
QUICK OVERVIEW

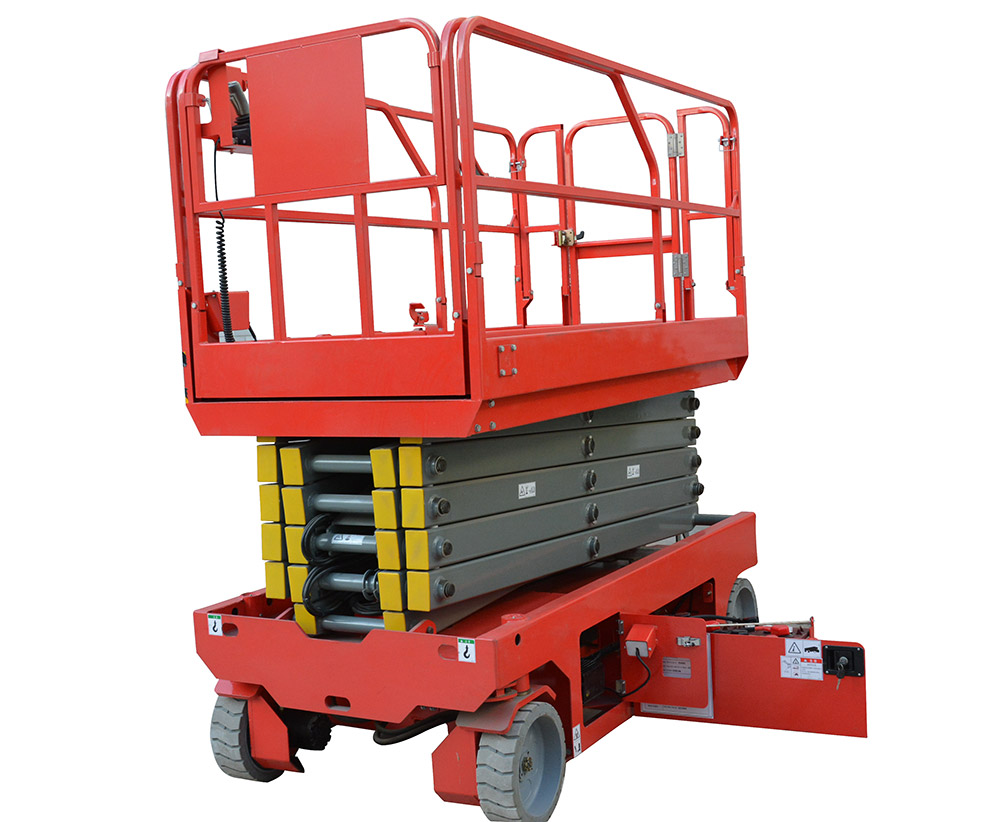

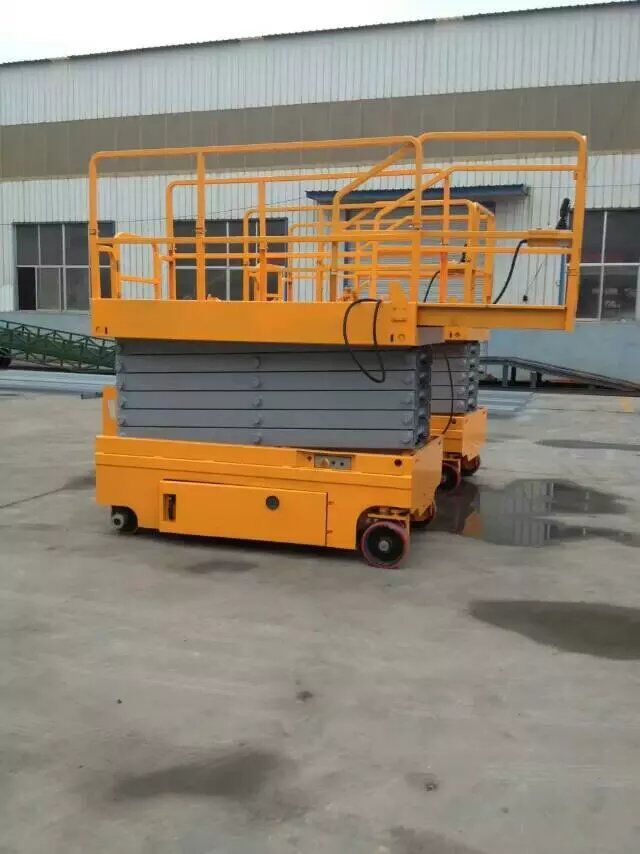

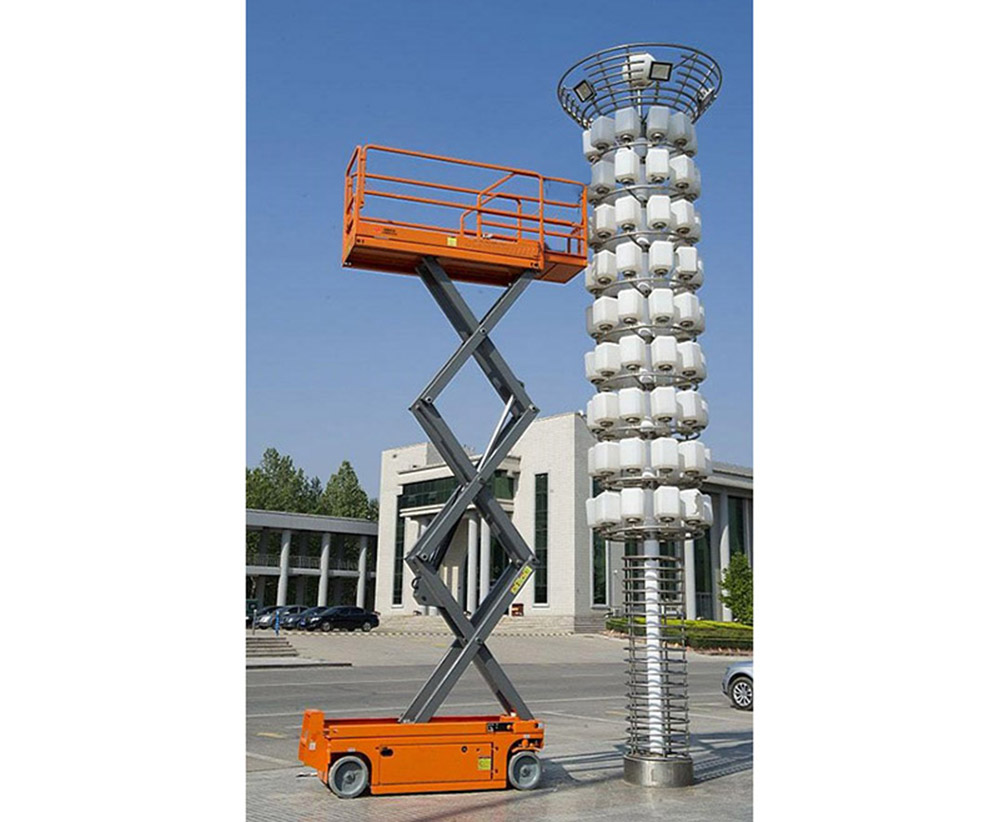

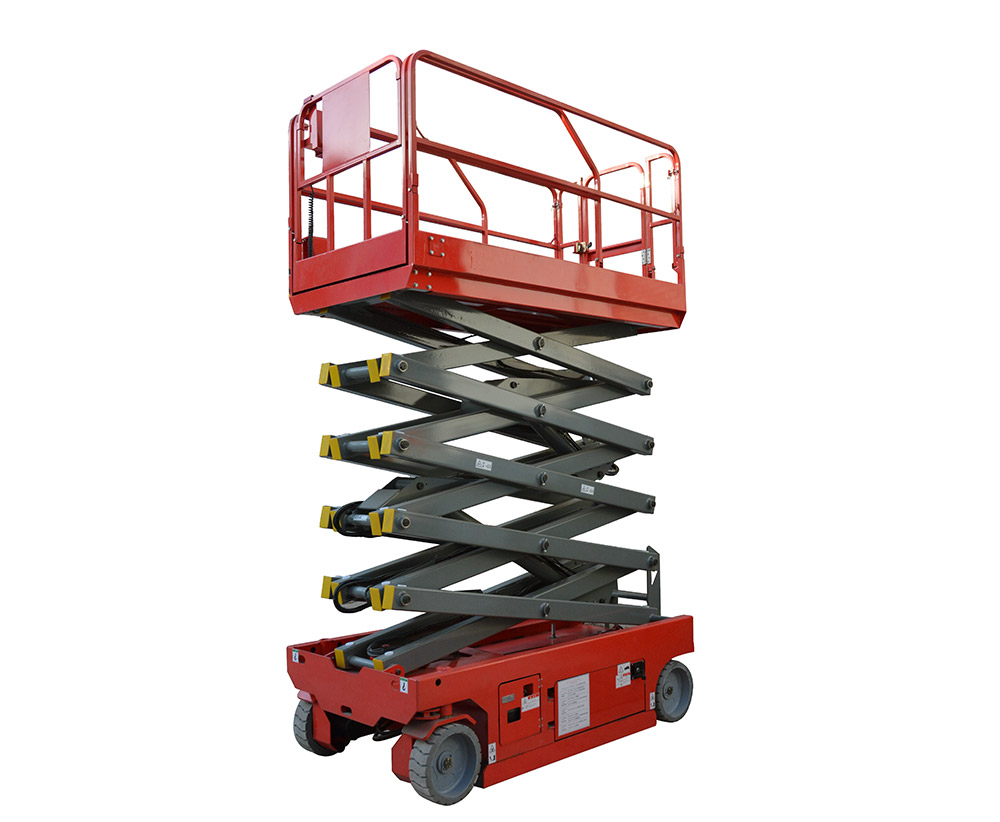

Self-propelled scissor lift is one of our hot sale machines,and it can lift people to high space for cleaning,installation. we use battery as lift driven power and travel power.the platform can extend on one side or on both sides,which can enlarge the working space.the electric scissor lift with size lower than 6m are compact and the whole wideth is 760mm
Contact us
Order No.:
Stock: 1-10
Delivery Time: 30
Without Tax: $
Machine video: 20000-22000
QUICK OVERVIEW
Self-propelled scissor lift is one of our hot sale machines,and it can lift people to high space for cleaning,installation. we use battery as lift driven power and travel power.the platform can extend on one side or on both sides,which can enlarge the working space.the electric scissor lift with size lower than 6m are compact and the whole wideth is 760mm
Contact us

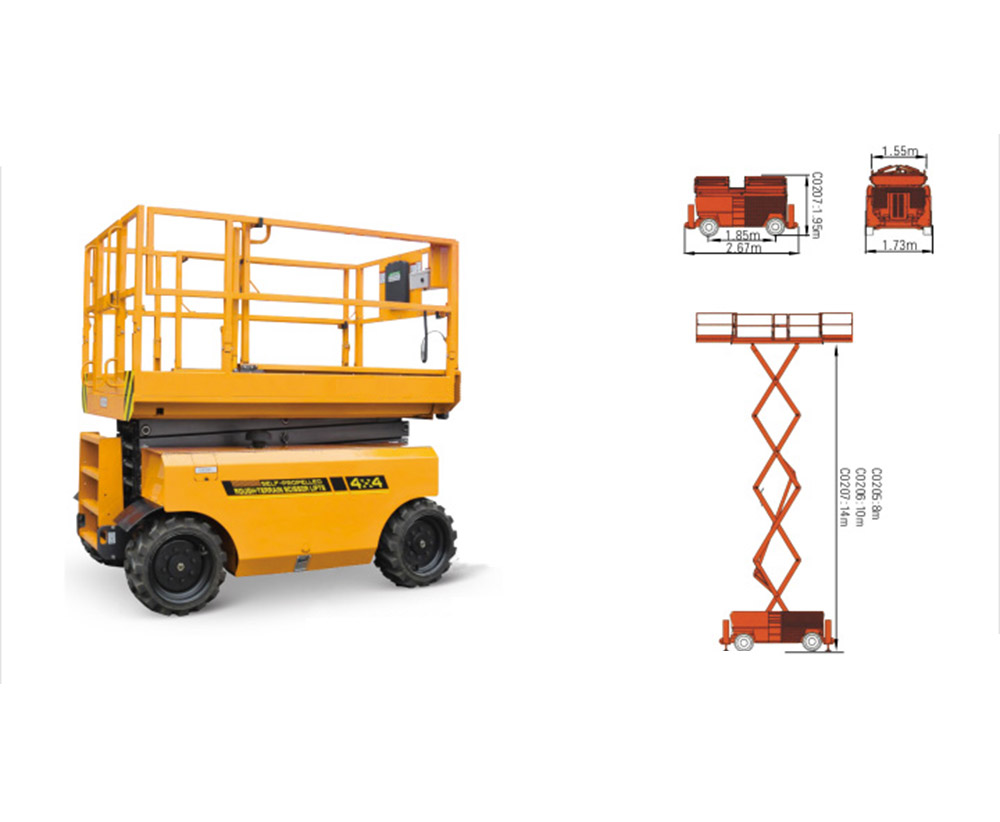

| Model No. | SPS-16RT |
| Max. Platform Height | 16.16m |
| Max. working Height | 17.86m |
| Lift Rated Capacity | 680kg |
| Platform Size(A*B) | 3.95*1.83m |
| Ground Clearance | 0.23mm |
| Extension deck measurement | 1.22*1.52m |
| Max. Drive Speed(Platform Stowed) | 6.3km/h |
| Max. Drive Speed(Platform Elevated) | 1.1km/h |
| Min. Turning Radius | 5.2m |
| Grade-ability | 50% |
| Solid tyre | 1933/12/20 |
| Rated power | 37kw |
| Fuel tank volume | 115L |
| Hydraulic tank volume | 170L |
| Overall Length | 4.03m |
| Overall Width | 2.28m |
| Overall Height | 3.16m |
| Overall Net Weight | 7850kg |

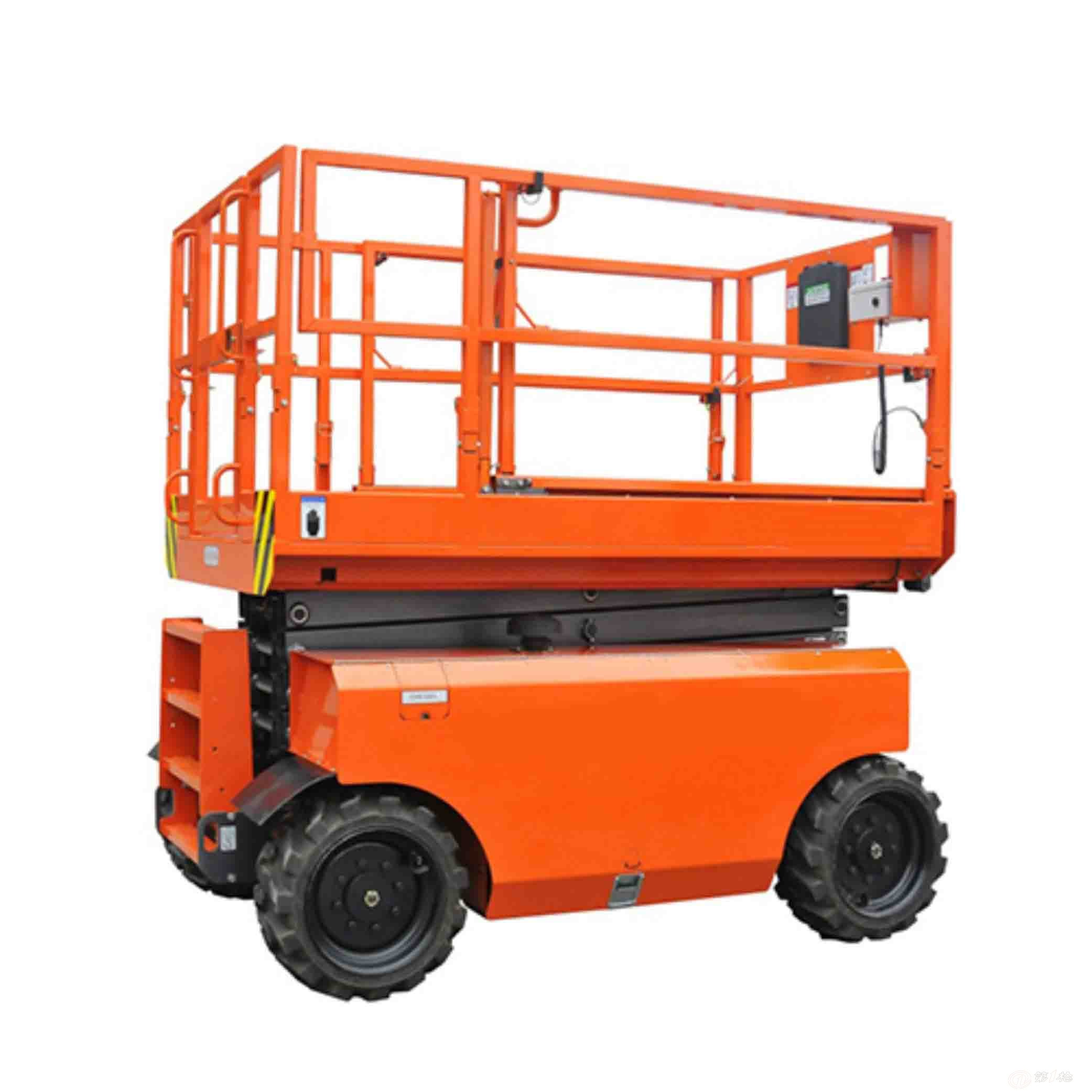

A scissor lift is perfect for aerial installation and maintenance jobs at sites without a power supply. Its strength and versatility makes it suitable for the toughest and roughest jobs, as it takes on bumpy terrain without losing power.
- The platform has great mobility, and can extend in each direction. Its max dimensions are over 6 meters wide and close to 2 meters long.
- An active oscillation axle perceives the terrain and guarantees the machine lands on four wheels, even when on an uneven road, without reducing the driving force.
- It is also easily customizable; the lifting height, motor, and even color can all be made according to your needs.
