SPS0.23-12
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 18000-20000
QUICK OVERVIEW

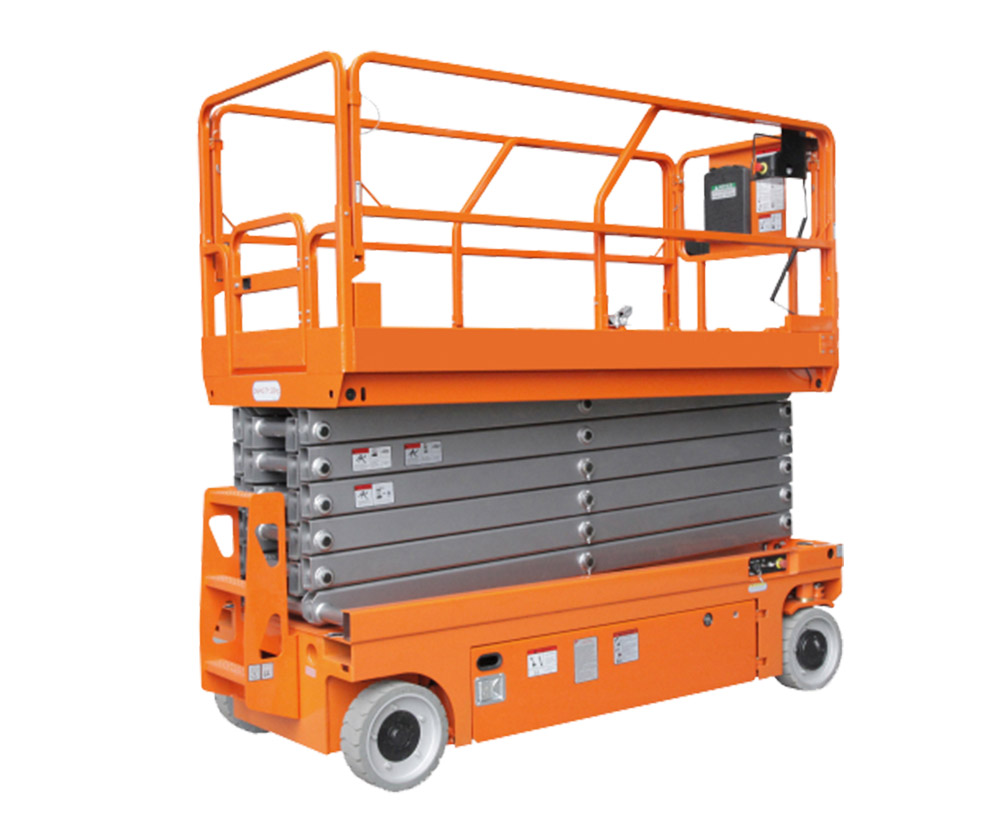

Self propelled scissor lift has humanized control box design, it is very-operation, which is suitable used for aerial installation maintenance of the working sites, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, Scissor lift platform is ideal lift platform for aerial maintain and clean, used indoor or outdoor. With AC driven system. Electric lift makes low noise and no emission when working. .
Contact us
Order No.:
Stock: 10
Delivery Time: 30
Without Tax: $
Machine video: 18000-20000
QUICK OVERVIEW
Self propelled scissor lift has humanized control box design, it is very-operation, which is suitable used for aerial installation maintenance of the working sites, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, Scissor lift platform is ideal lift platform for aerial maintain and clean, used indoor or outdoor. With AC driven system. Electric lift makes low noise and no emission when working. .
Contact us
| Model No. | SPS-12 |
| Max. Platform Height | 11.9m |
| Max. working Height | 13.6m |
| Min. Platform Height | 14535mm |
| Ground Clearance | 100/20mm |
| Lift Rated Capacity | 320kg |
| Platform Size(A*B) | 2430×1130mm |
| Platform Extend Length | 900mm |
| Max. Drive Speed(Stowed) | 3.2km/h |
| Max. Drive Speed(Elevated) | 0.8km/h |
| Min. Turning Radius | 2300mm |
| Grade-ability | 25% |
| Tyre | 0.38*0.125m |
| Lift Motor | 24/3 v/kw |

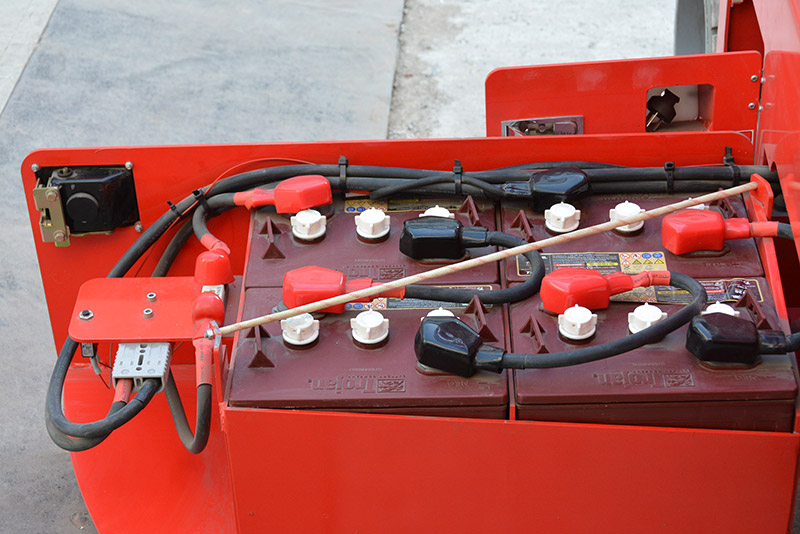

| Battery | 4×6/230 v/Ah |
| Charger | 24/20-30v/a |
| Overall Length-D | 2440*1150*2540mm |
| Overall Net Weight | 2610kg |
Easy control on platform for lifting up/down, moving or steering with speed adjustable
Extendable TableExtendable table enlarge work range for user, cross over small obstacles.
Fodable Guardrails:Fodable guardrails decrease height of scissor lift when go through small openings.
An active oscillation axle perceives the terrain and guarantees the machine lands on four
wheels, even when on an uneven road, without reducing the driving force.It is also easily customizable; the lifting height, motor, and even color can all be made according to your needs.
